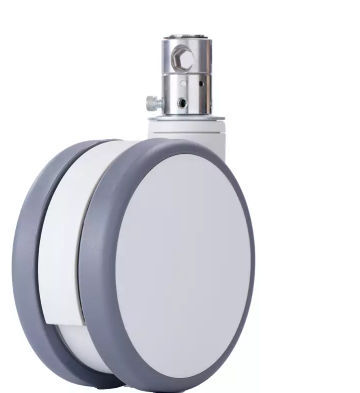

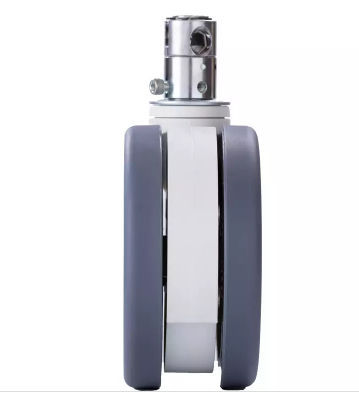

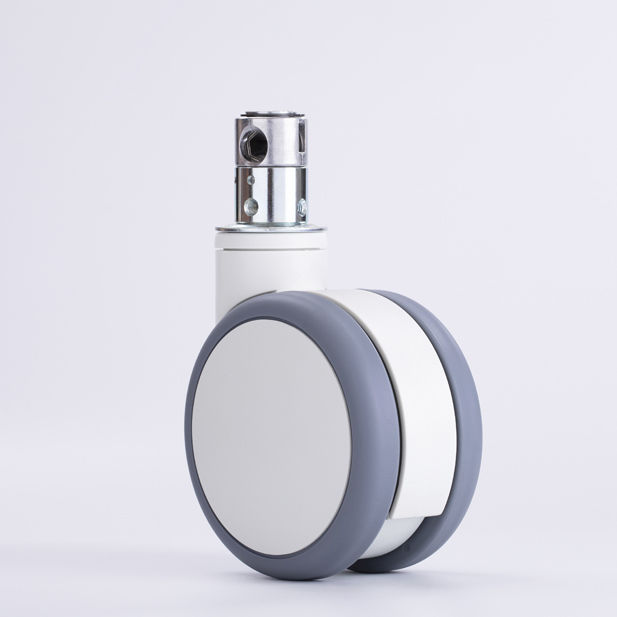

Wheel with electrical central locking
T125C-2-062-D32X50-3D30
Central Locking Caster 5 Inch 6 Inch Bed Caster Hospital
Color:White & Grey；Certificate:ISO13485, CE, RoHS；Wheel material:TPU；Housing Material:Nylon PA6；；Bolt Size:28mm*96mm；
Product Description
Central locking caster with total lock, directional lock and free movement. Twin wheels with precision ball bearing and covers. Housing and wheel core made of Nylon-PA6. High load-bearing capacity TPU wheel tread assures of quiet and stable rolling.
Apply to the stem with cam hole.
Specification
Caster width - 75mm
Tread width - 17mm
Bolt diameter - 32mm
Bolt Length - 50mm
Offset - 38.5mm
Swivel Radius - 101mm
Swivel Interference - 202mm
Overall height - 153mm
Temperature - -30/+80℃
Standard - EN12531
Weight - 1.05KG
