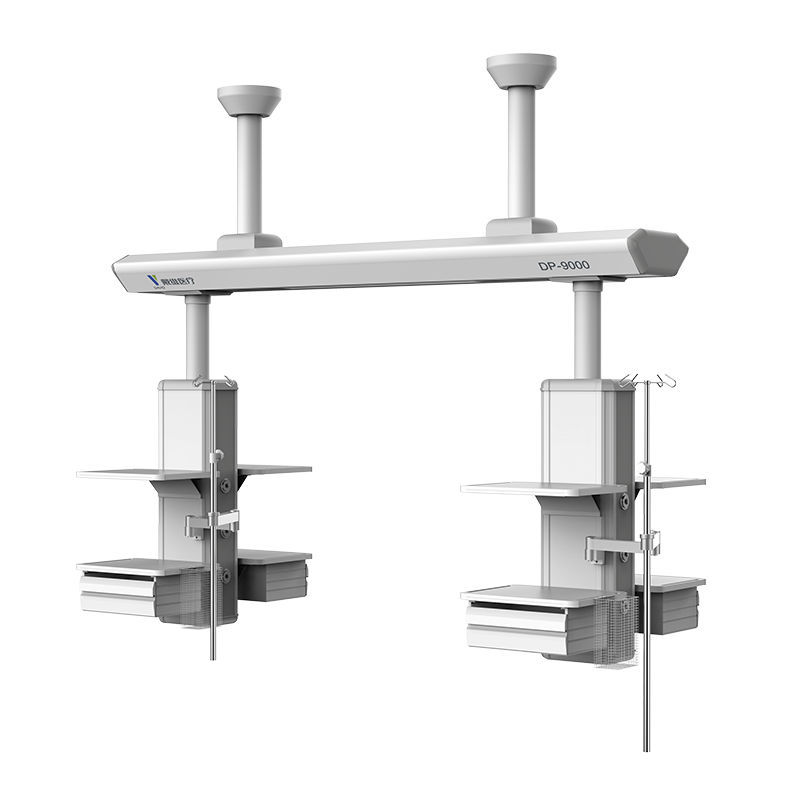

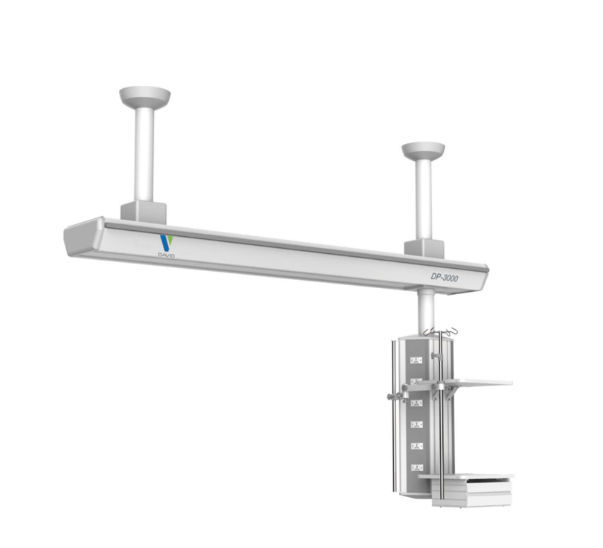

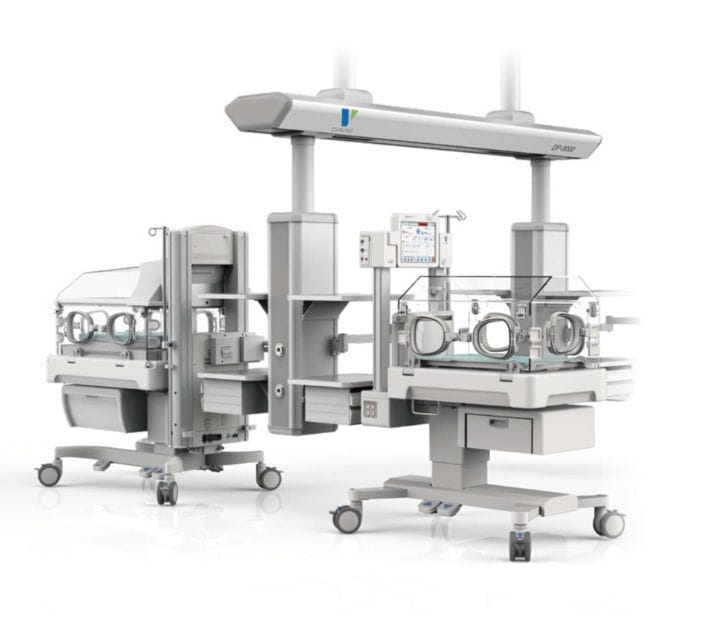

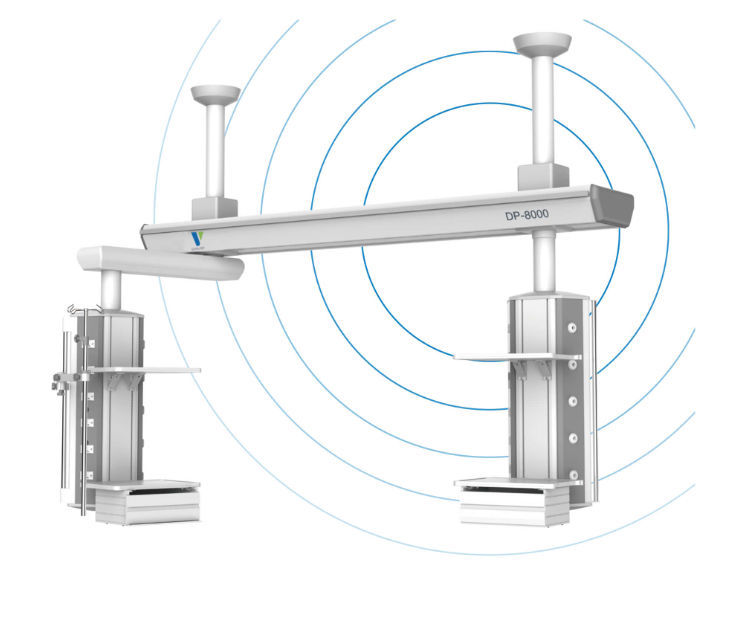

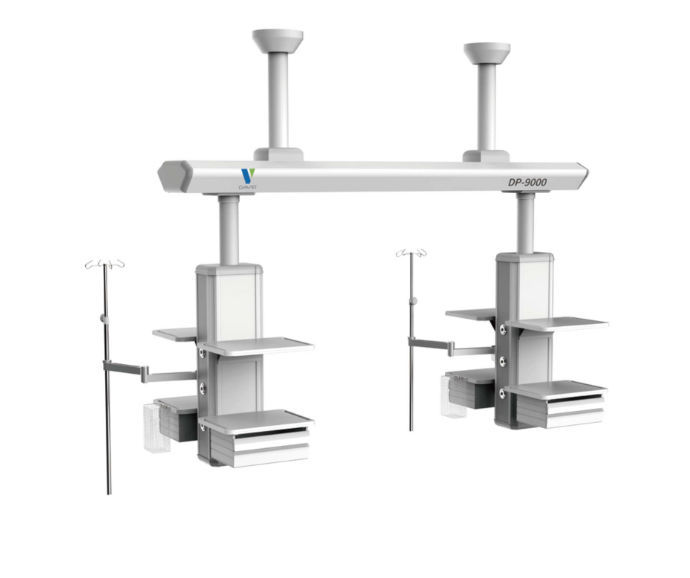

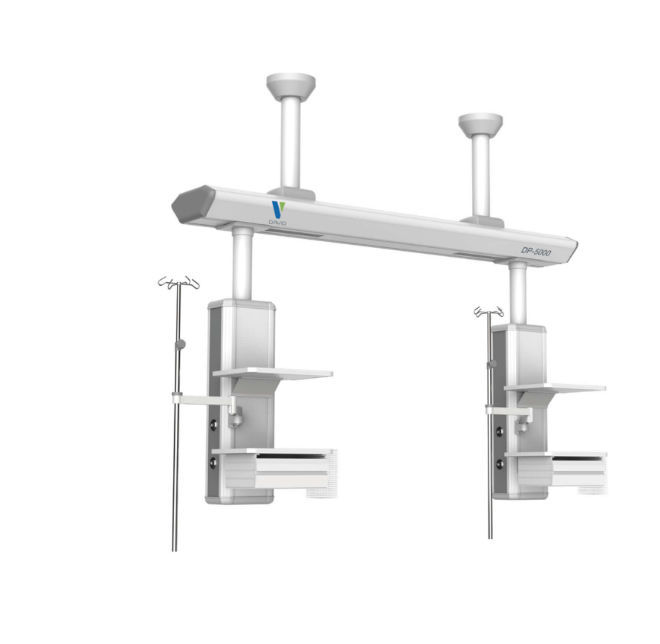

The bridge-type pendant system specially designed for NICU and ICU for whole process monitoring and recovery, is a necessary medical rescue auxiliary equipment in modern intensive care unit.

The gas terminals of different colors and shapes

Effectively avoid mis-plugging, and have the on, off and unplugging states and the function of maintenance with gas, strictly conforming to the ISO standards;

Plain needle roller plane bearing

Strong wear resistance, can obtain high axial load and rigidity in small space;

High-strength aluminum alloy is selected for one-time extrusion molding, which can meet the requirements of four times the load-bearing safety factor;
The electrostatic spraying technology is antibacterial and mold resistant, healthy and environmentally friendly;
The front-rear-separated gas and electricity terminal design can effectively manage the cables of medical equipment and reduce the risk of cable crossover;
The bottom of the body is equipped with an oxygen vent hole to prevent fire accidents caused by oxygen accumulation.

The "dry-wet separation" partition design can provide centralized and scientific managment;

The cantilever and terminal hood body with large rotation angle (>340°), the rotating joint is ultra-quiet, effectively expanding the medical care space;

Passed the CE certification, ergonomic gas and power insertion positions, more than 20,000 times of clinical plugging and unplugging;

The dual-track design

The mechanical damping brake enables easy and smooth braking;

The self-suction drawer

Enable more convenient storage and quieter closing;
