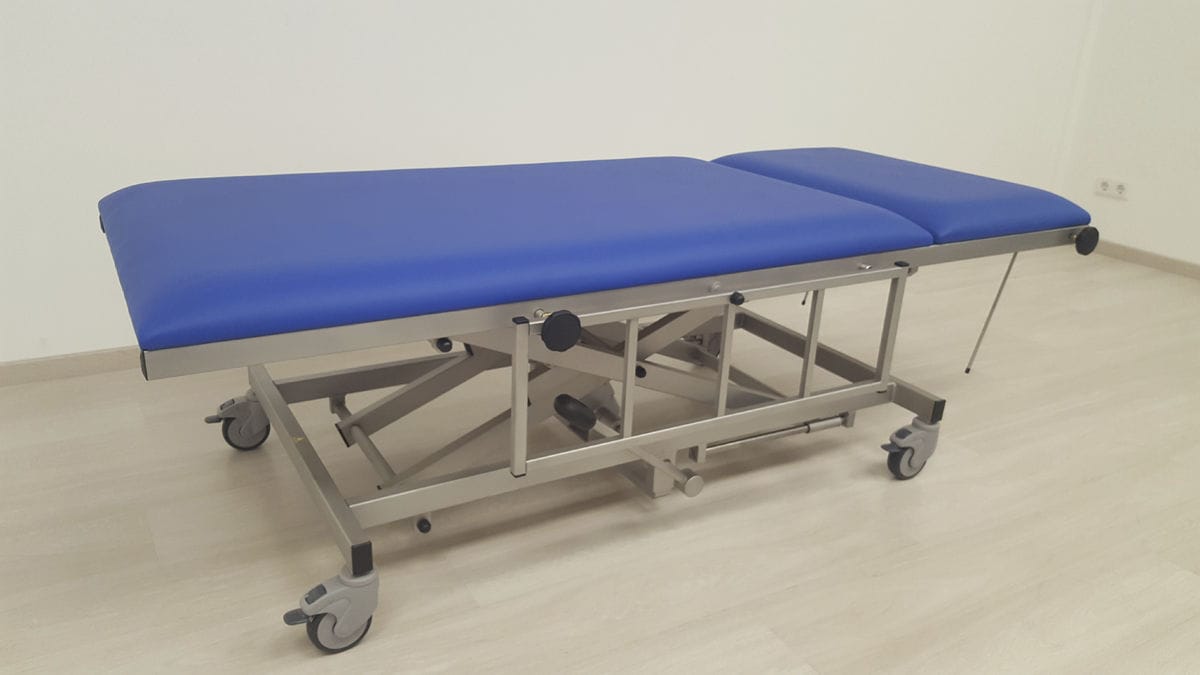

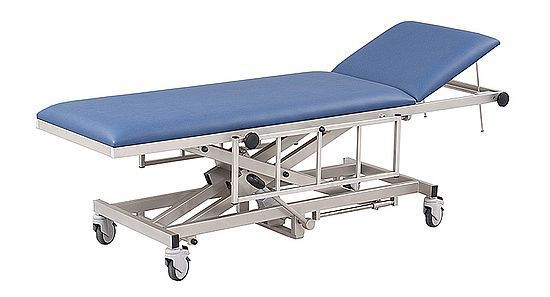

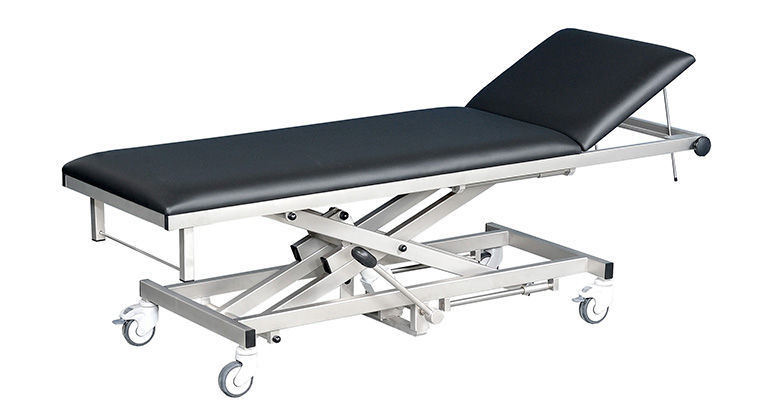

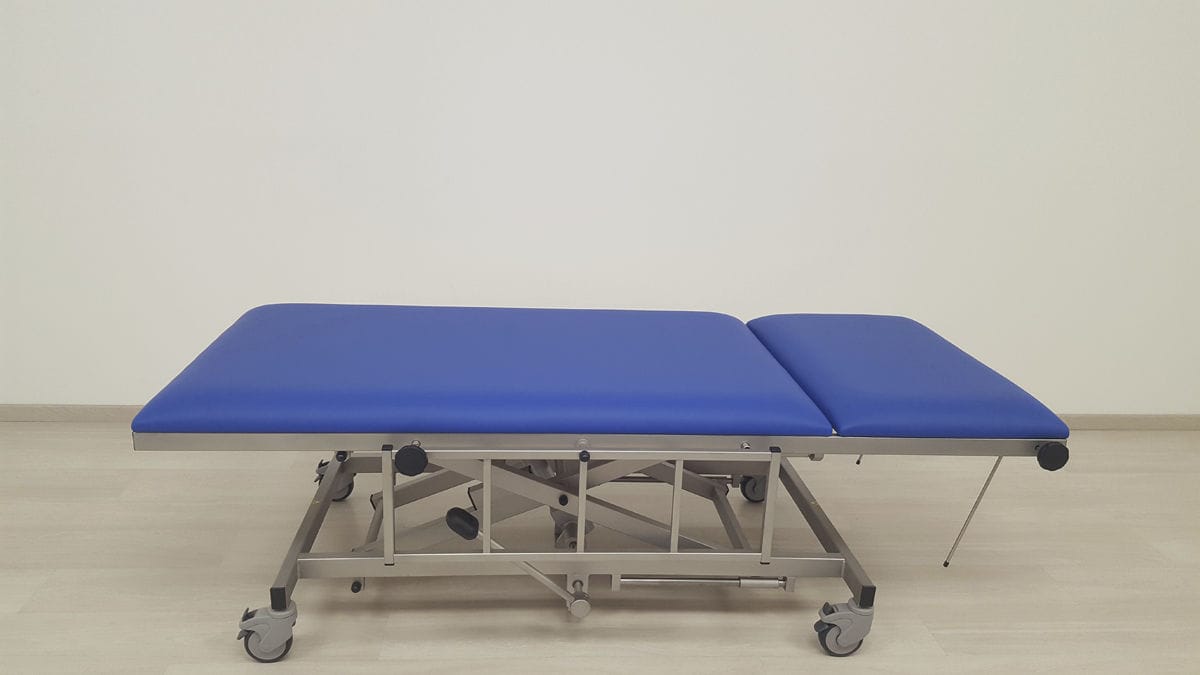

MRI stretcher trolley
H-AWL 3065/Y 980VA
These hydraulic height-adjustable tables with side guards were also developed specifically for use in magnetic resonance (MRI or MR). The frames are made of slightly magnetic stainless steel or aluminium and brass components. The low level of residual magnetism does not affect the imaging process, nor are the MRI patient transport tables attracted by the magnetic field of the MR system. They can be used safely for MR systems up to 7 Tesla.

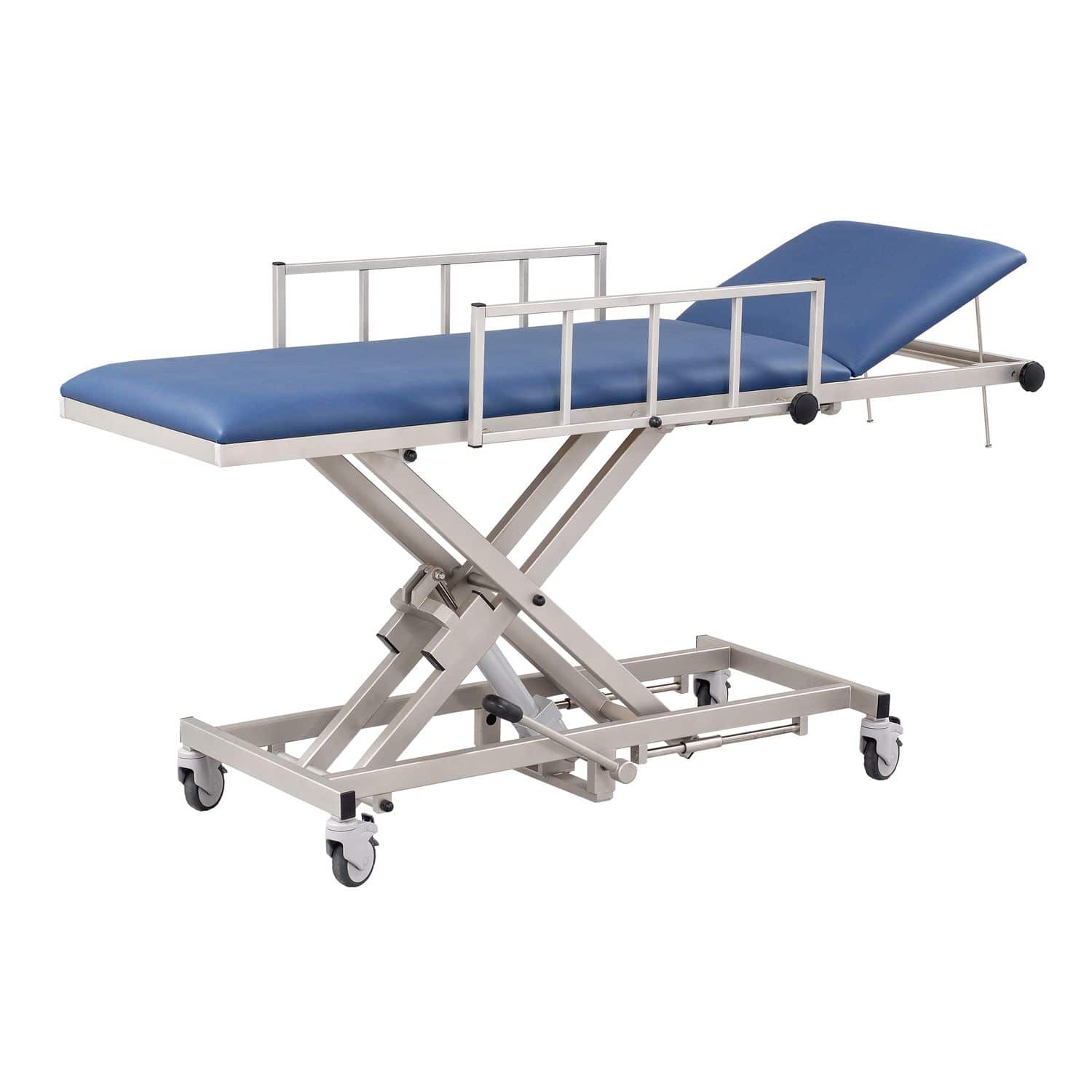

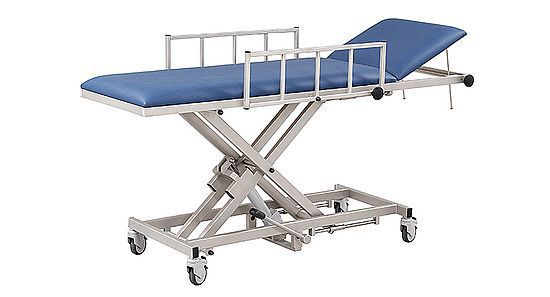

The two side guards included in the scope of delivery ensure safer patient transport and fall protection.
Due to the mobility of the hydraulic height-adjustable MRI patient transport tables and the associated flexibility of use, the hydraulics, which are independent of the power supply (compared to an electric motor) and can therefore be operated anywhere and at any time, are operated via a foot pump. The advantage of these hydraulic height-adjustable MRI patient transport tables is that they are suitable for MR systems with different patient table heights and make it easier for patients to get on and off.
The hydraulic height-adjustable MRI patient transport tables can be used safely under the following conditions:
Static magnetic field of a maximum of 7 Tesla or less,
With an additional spatial gradient of a maximum of 10 T/m or less,
The table must not exceed the limit line of 10 T/m with the head end/foot end in the direction of movement towards the magnet.
Features
The hydraulic height-adjustable MRI patient transport tables are equipped with swivel castors. All four can be totally locked in turning and running directions.
Two side guards are supplied with these MRI tables for safer patient transport.
