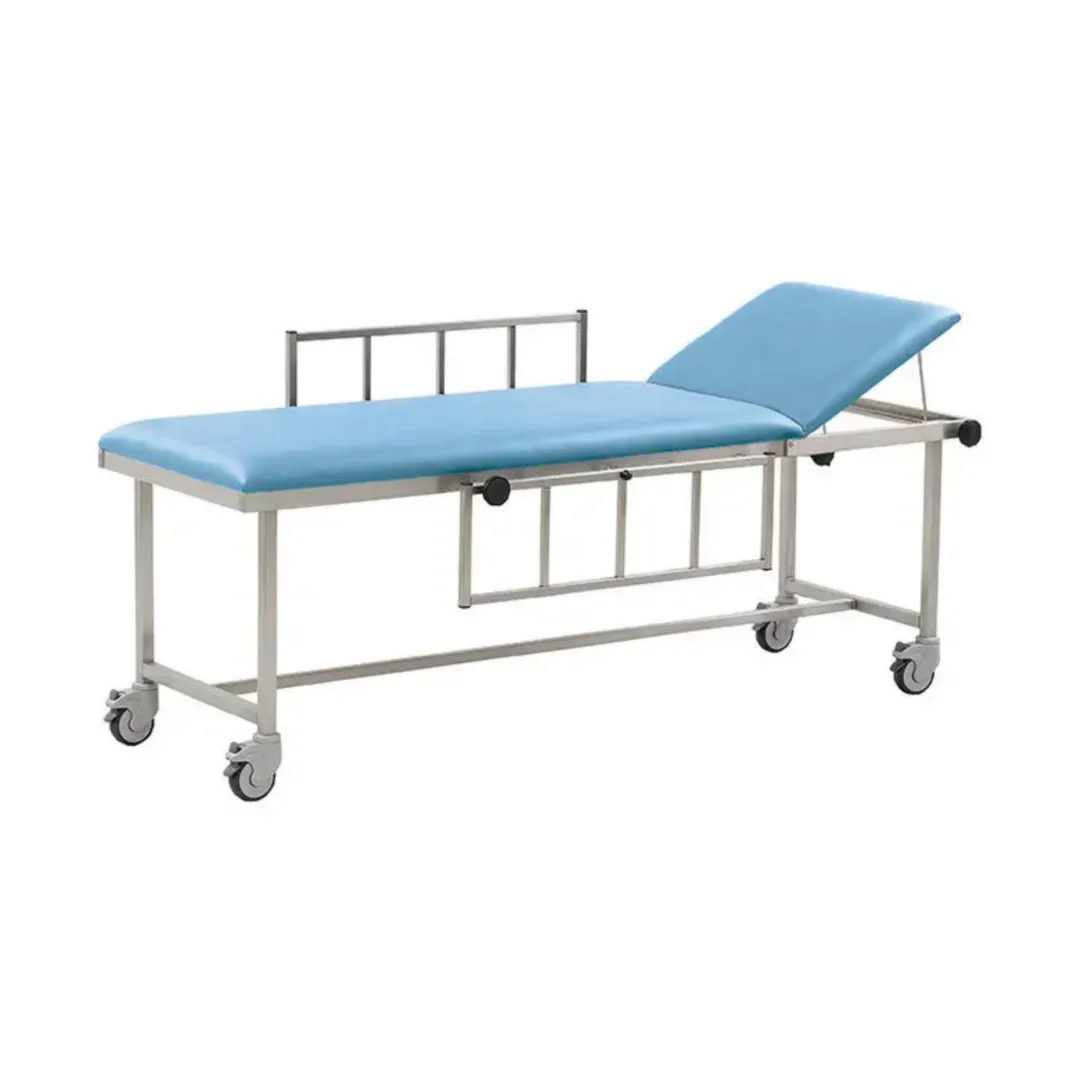

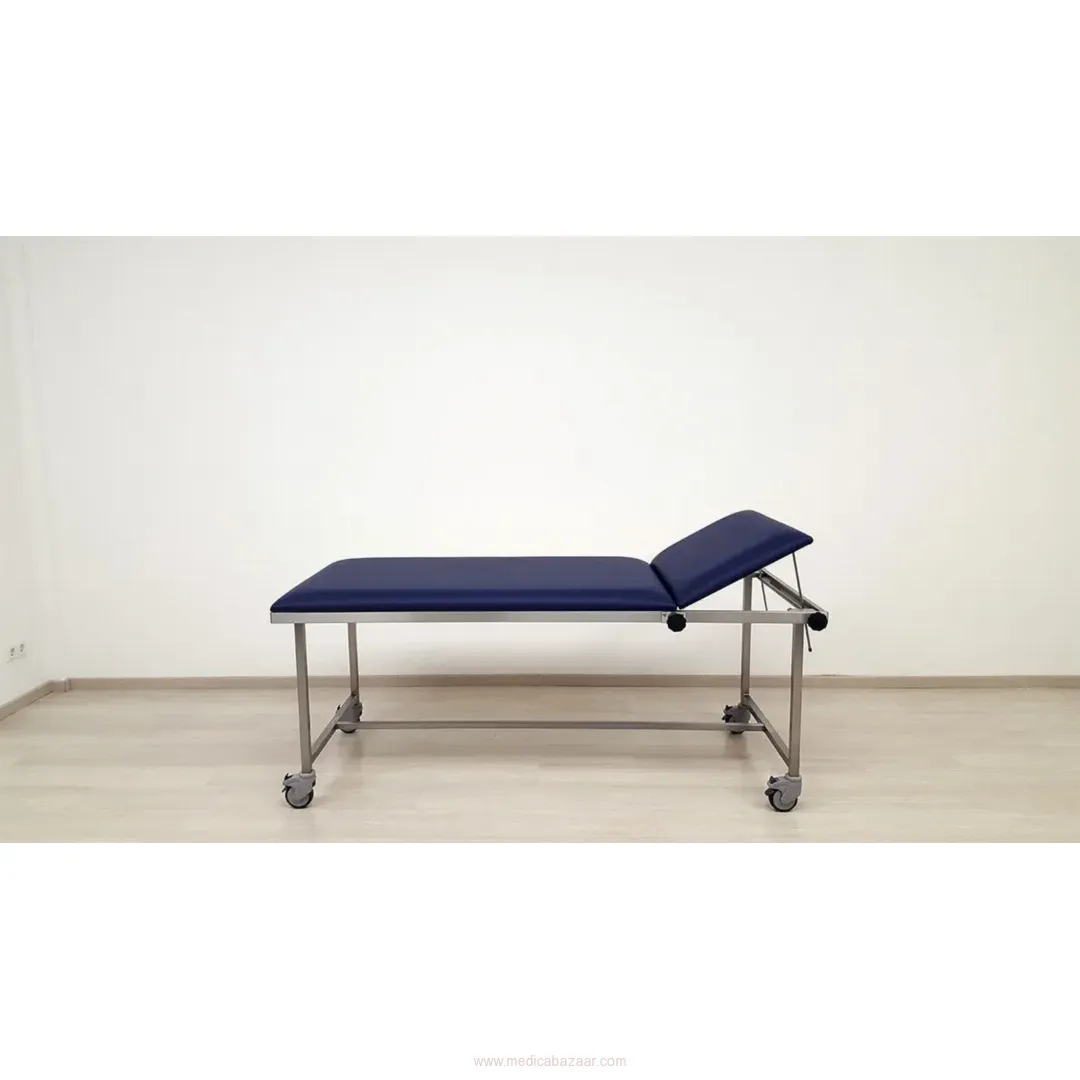

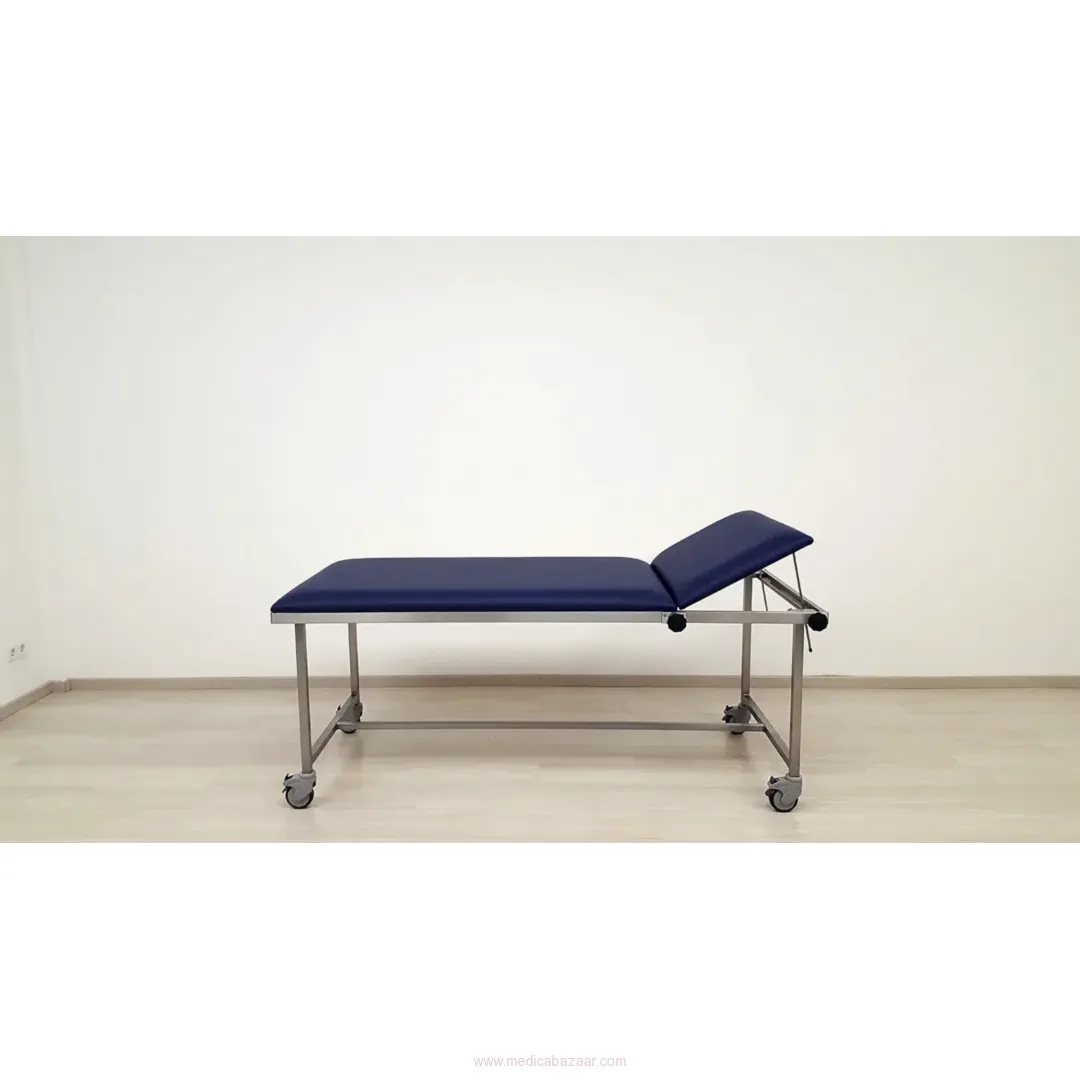

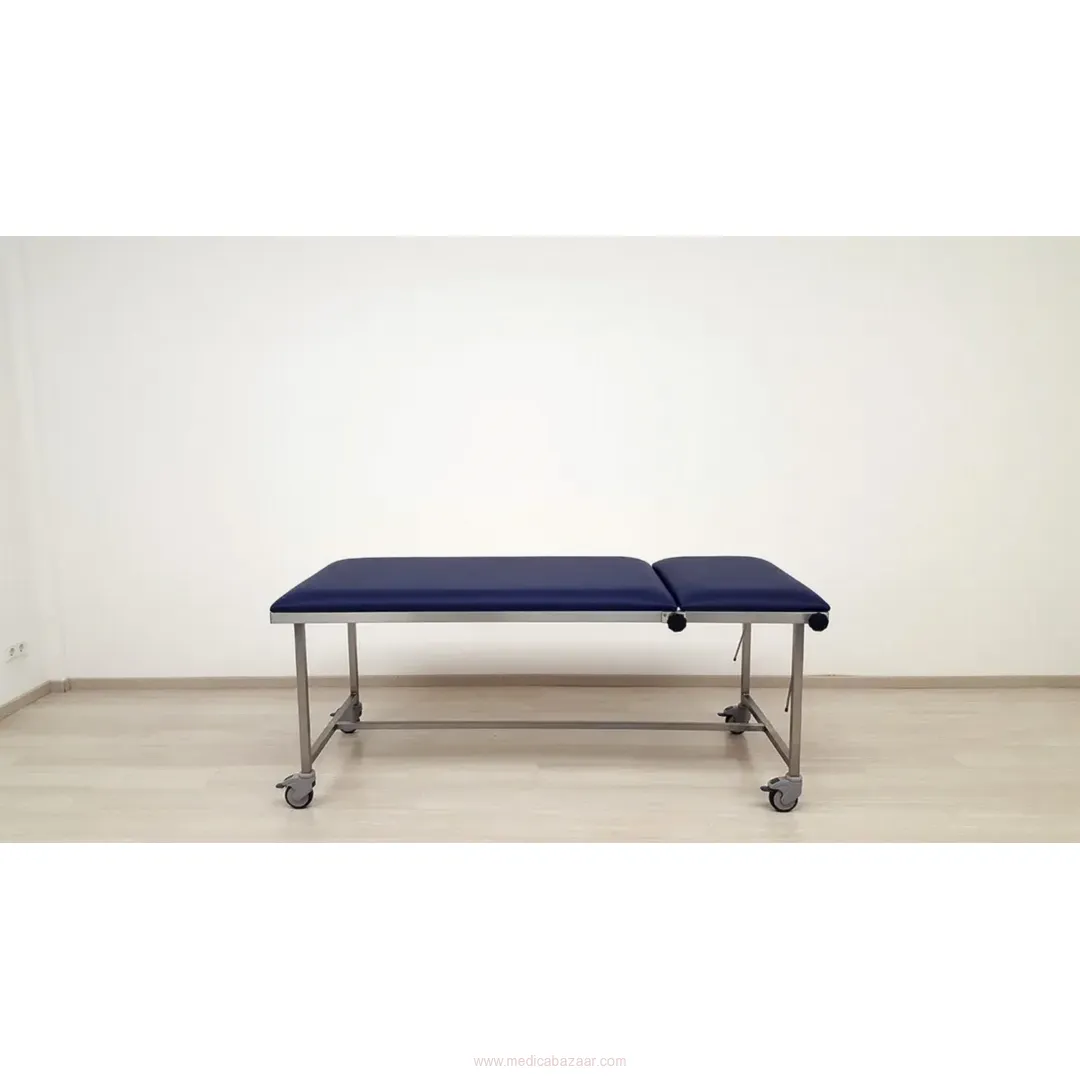

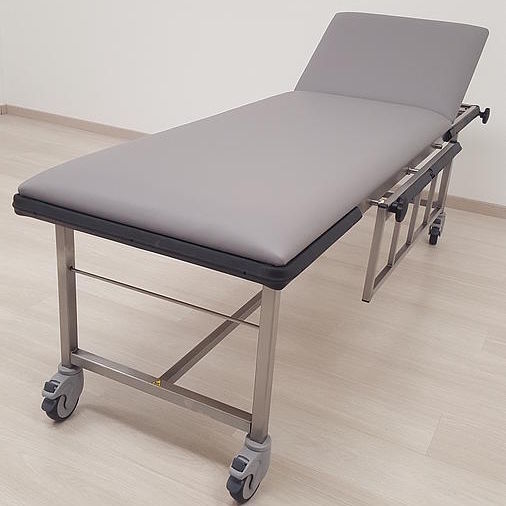

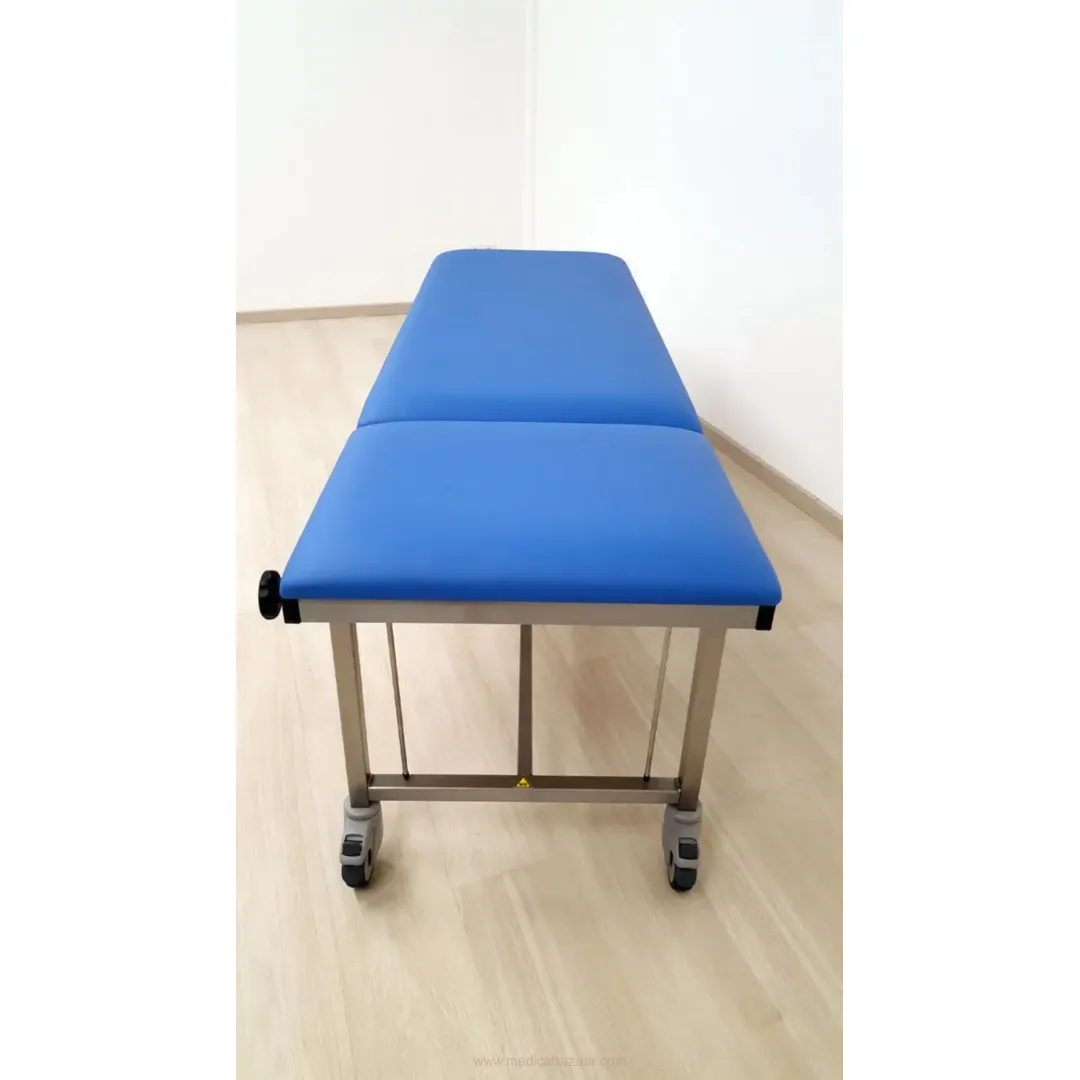

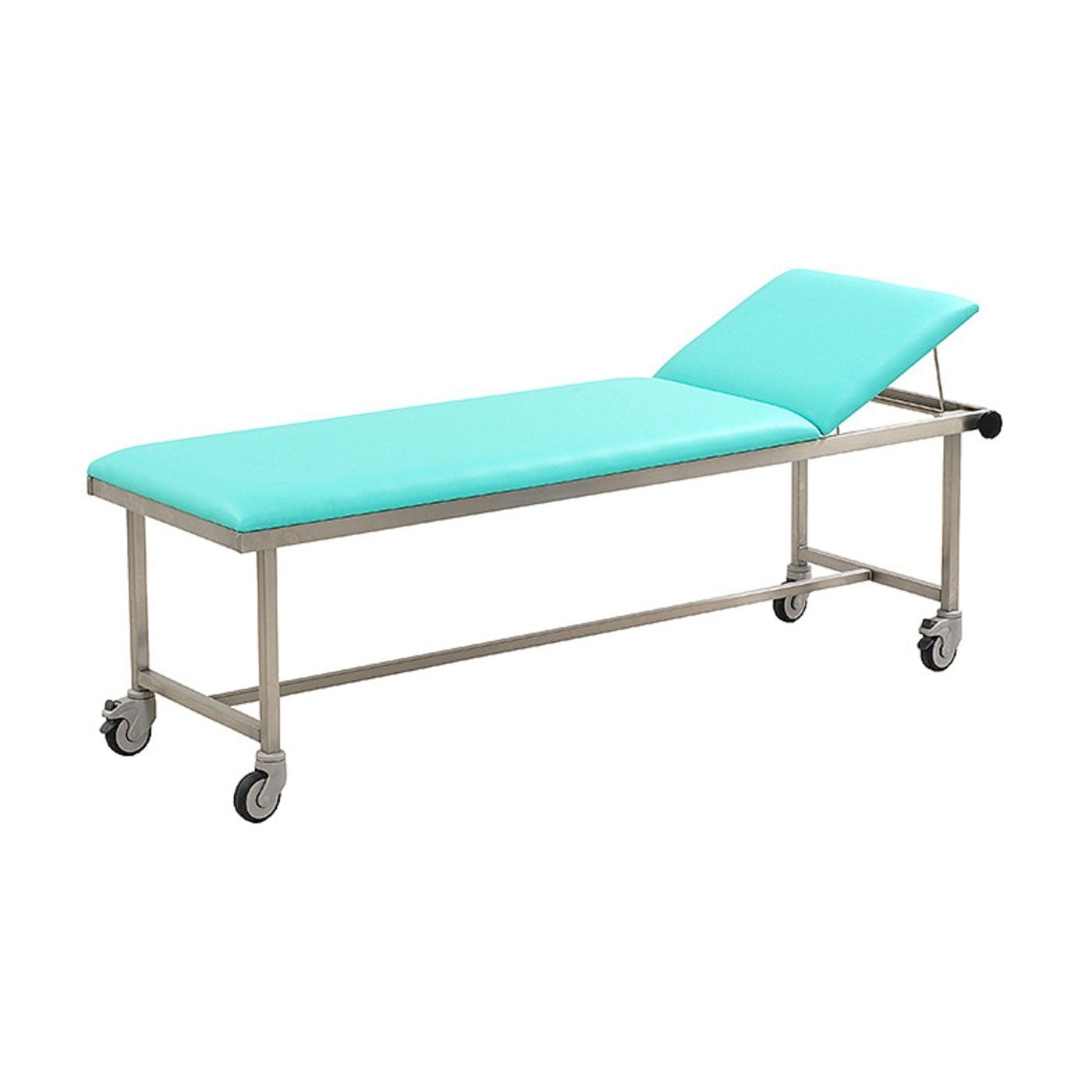

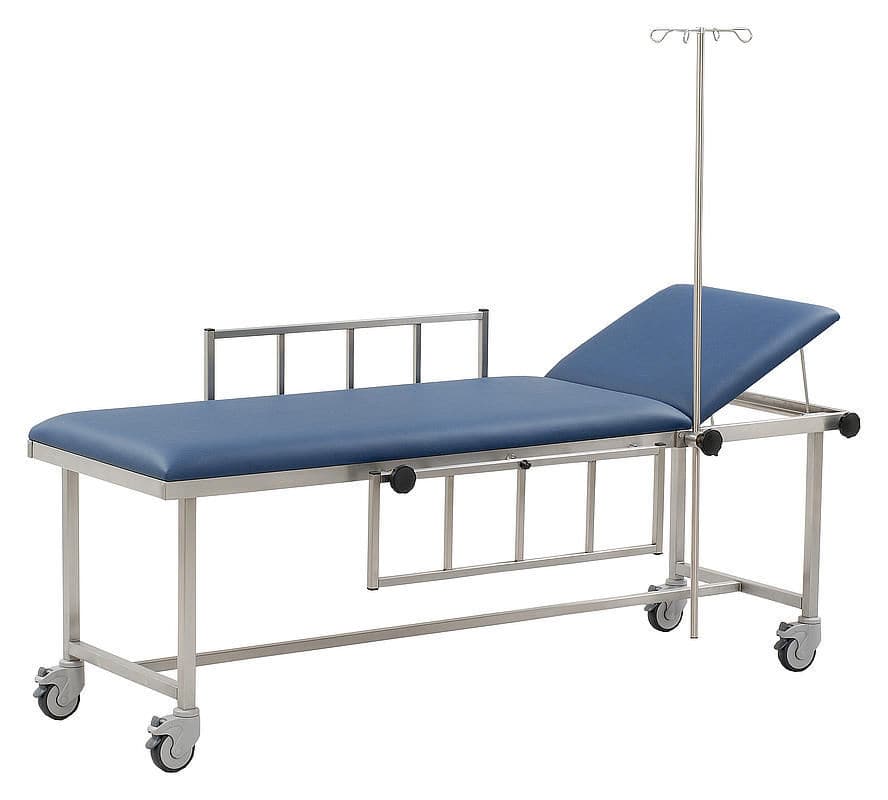

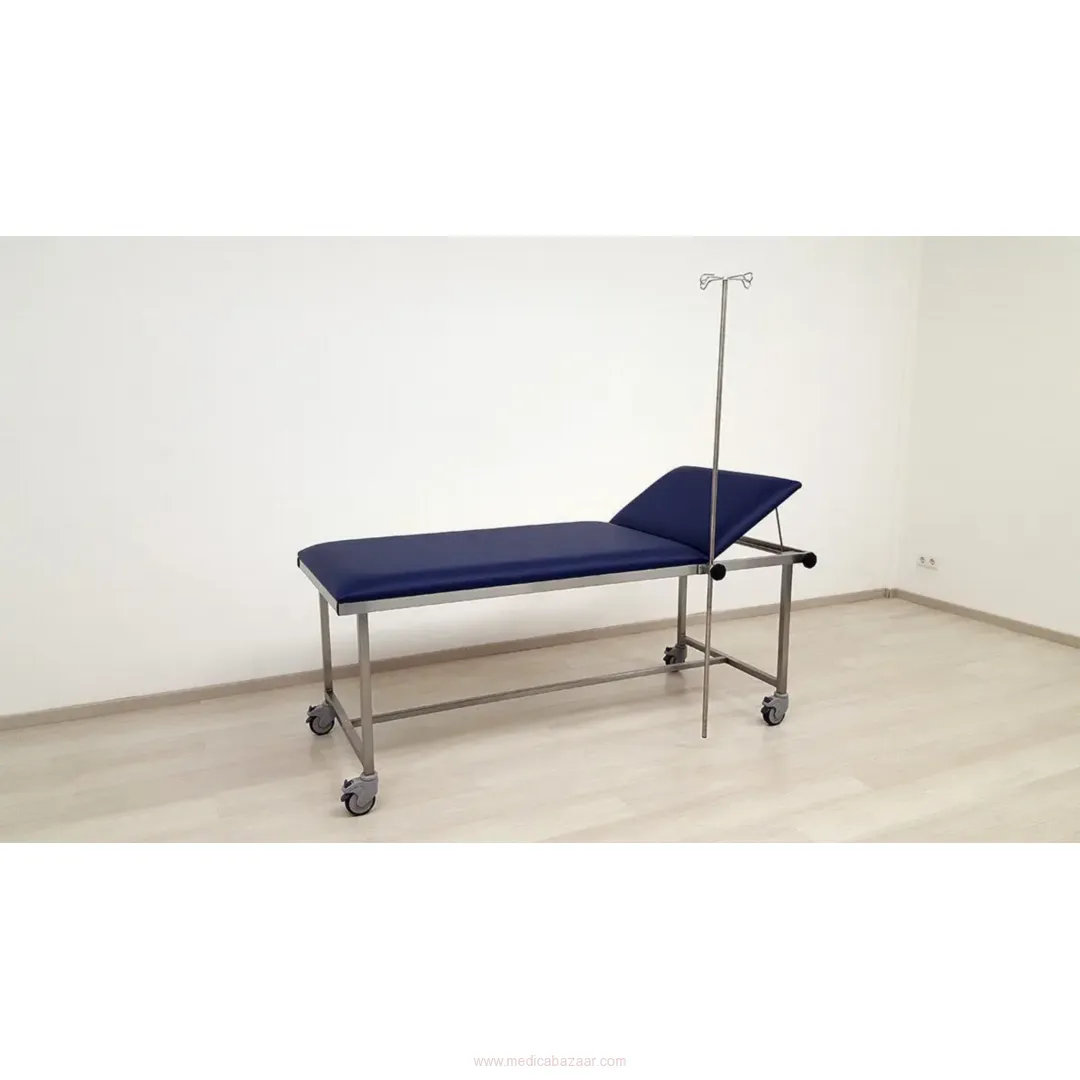

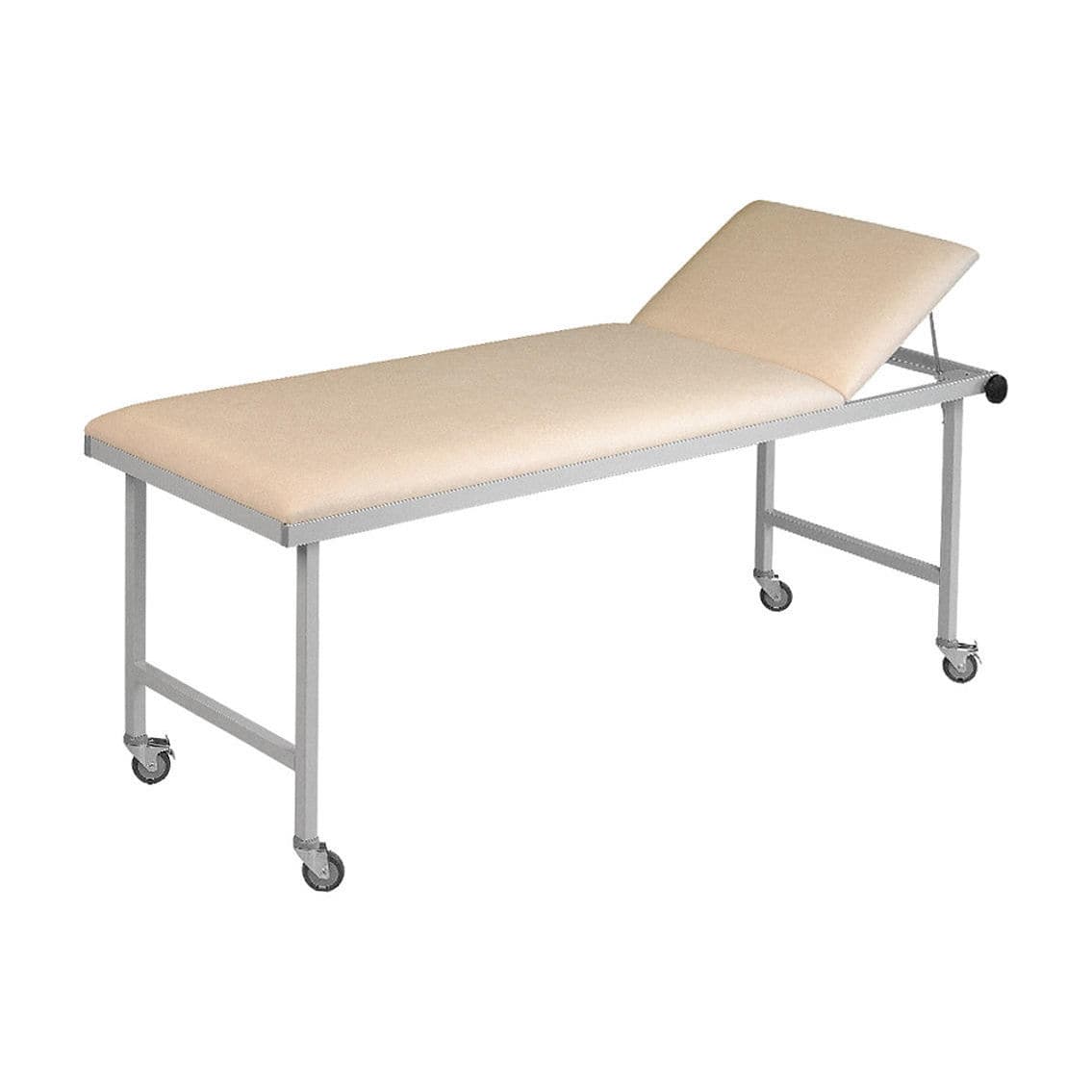

Transport Stretcher Trolley
U-3065/LRVA, EKG-3080/LRVA
U-3065/LRVA, EKG-3080/VA
These MRI transport tables are intended for use as patient transport tables in the field Magnetic Resonance Imaging (MR or MRI). They are made of very slightly magnetic stainless steel and suitable for all MR systems up to 7 Tesla (according to their compatibility data sheets).
The MRI patient transport tables U-3065/LRVA, EKG-3080/VA can be used safely under the following conditions:
- Static magnetic field of maximum 7 Tesla or less,
- Additionally a spatial gradient of maximum 7 T/m or less,
- The table may not exceed the limit of 7 T/m with the head end side/foot end side in sliding in the direction of the magnet.
FEATURES

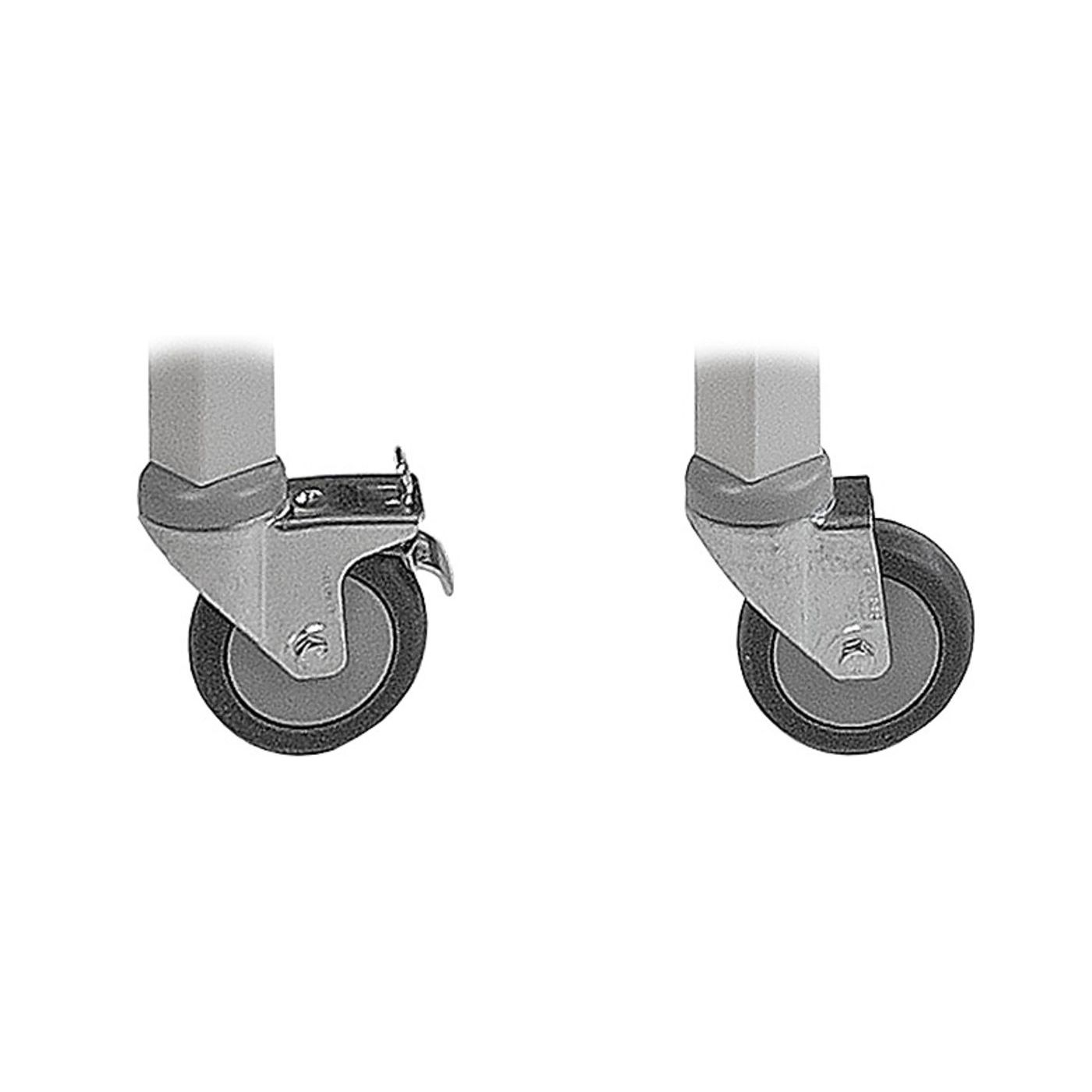

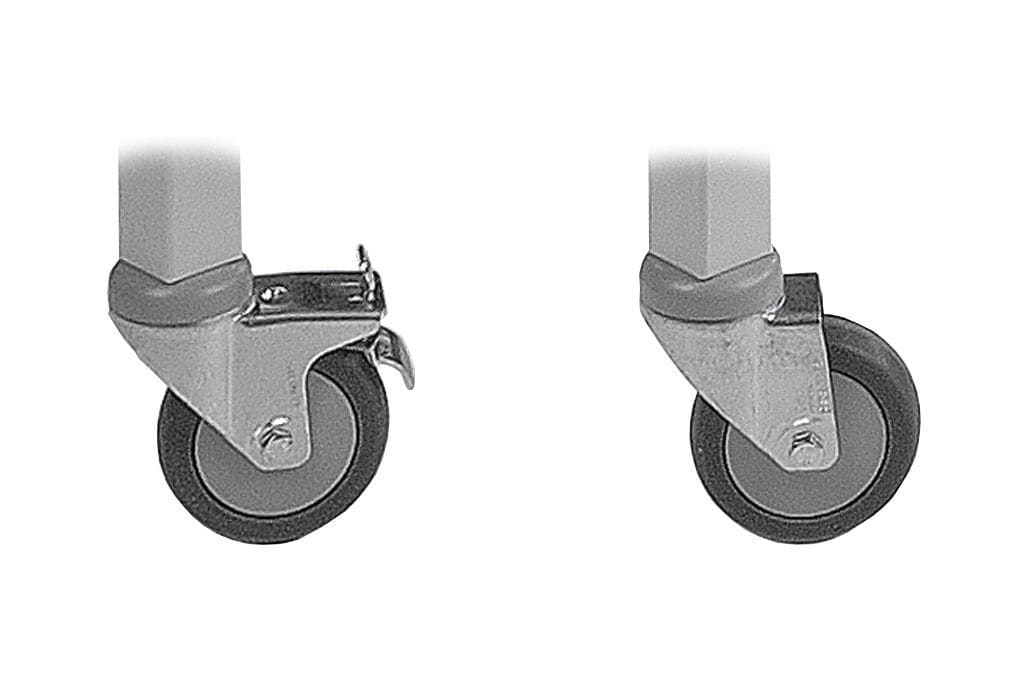

- four smooth-running multi-directional castors (Ø 100 mm, all with locking function) for effortless patient transport.
-available heights heights of 650, 700, 750 and 800 mm for an ergonomic working position.
Note: Unless requested otherwise at time of order, the table will be delivered in the standard height of 650 mm.
- Two-piece tabletop, upholstery thickness of 64 mm.

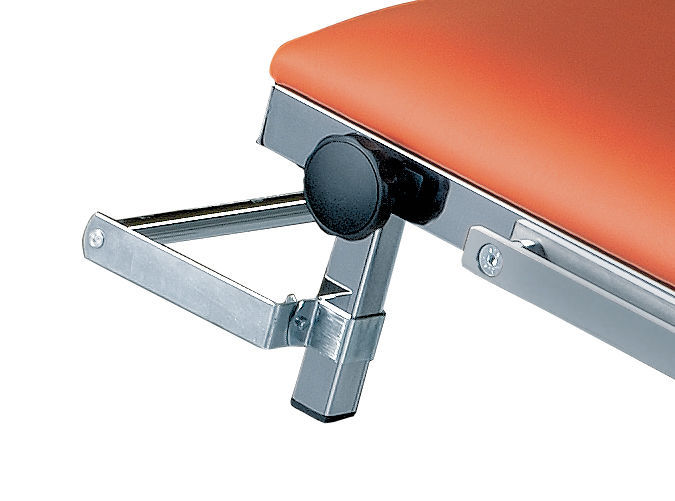

- Continuously adjustable headrest (up to +40°) with clamping rod locking mechanism.

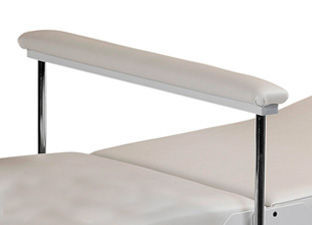

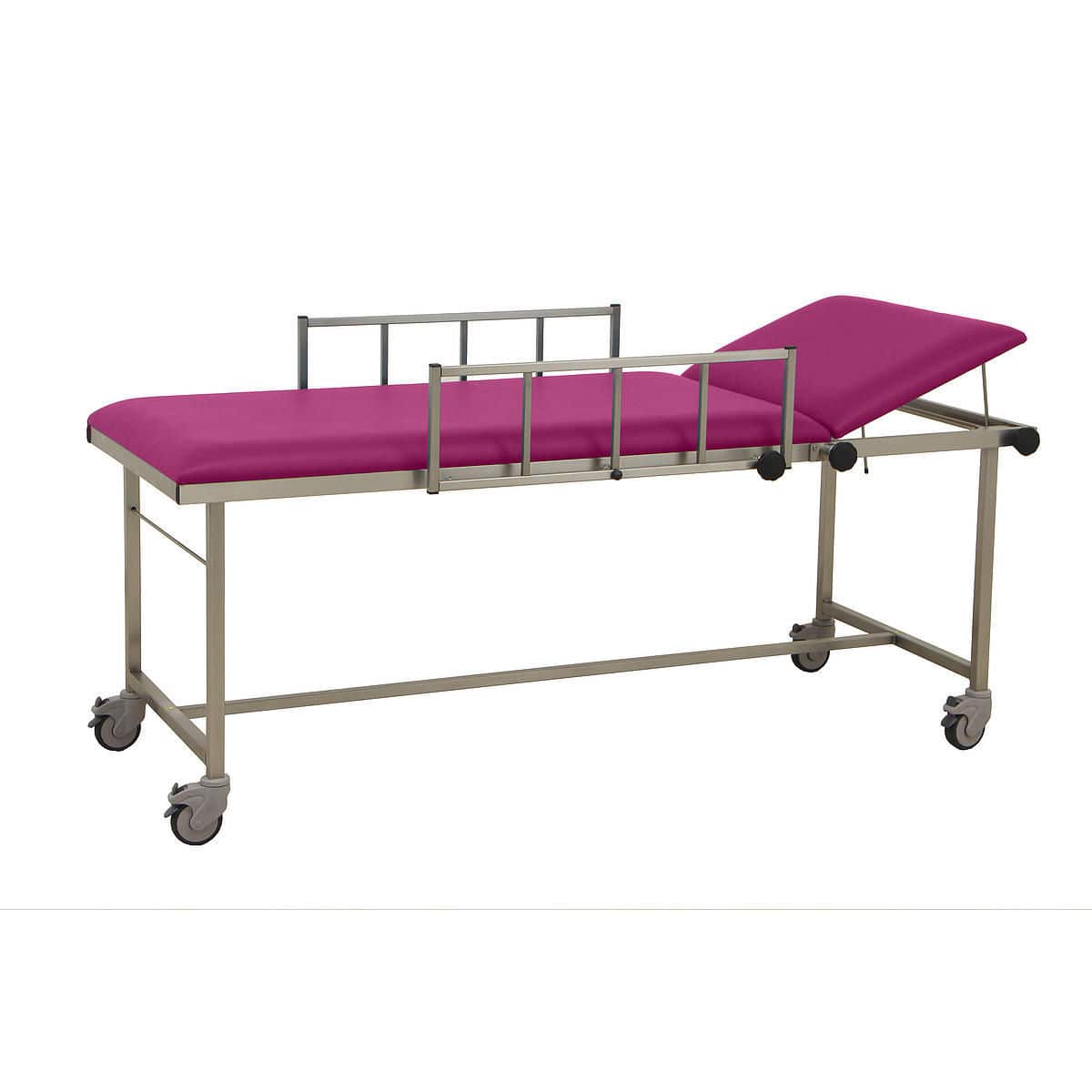

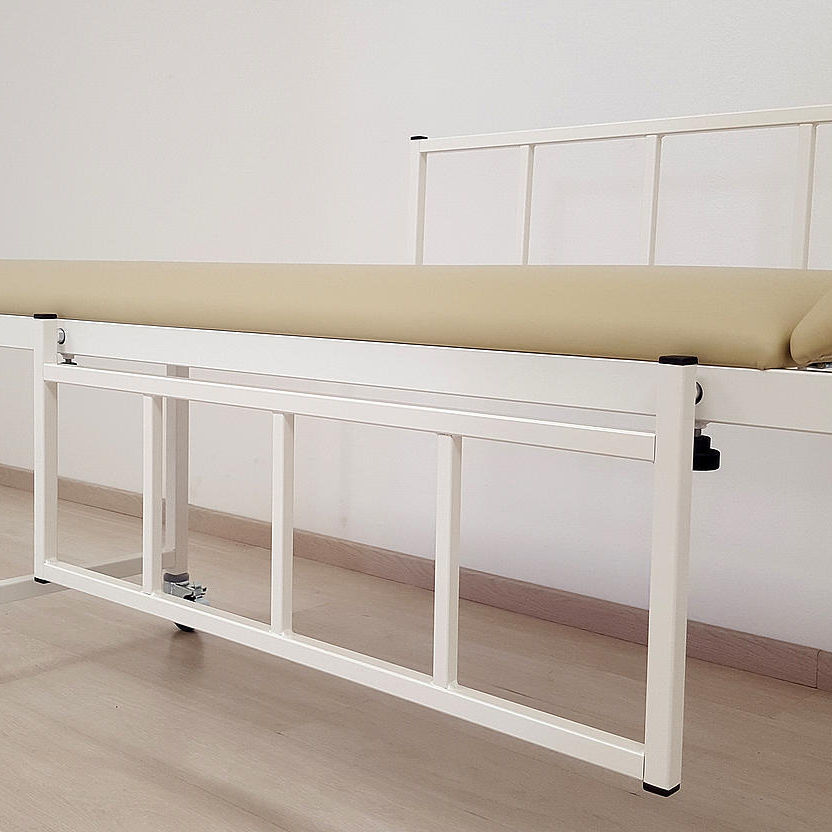

Note: To ensure safe patient transport, the MRI tables are also available with side safety rails (Article No. AWL-3065/VA and AWL-3080/VA)

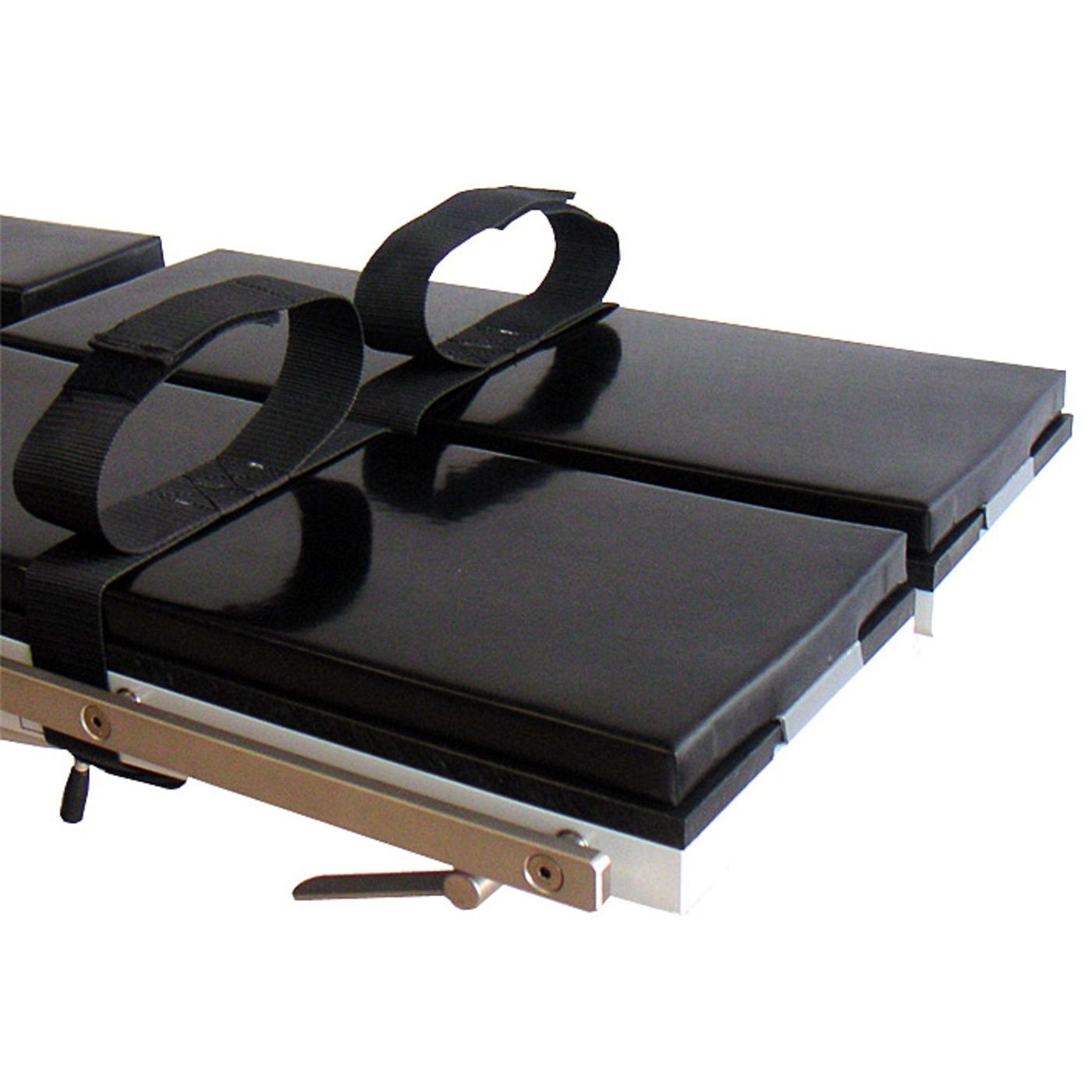

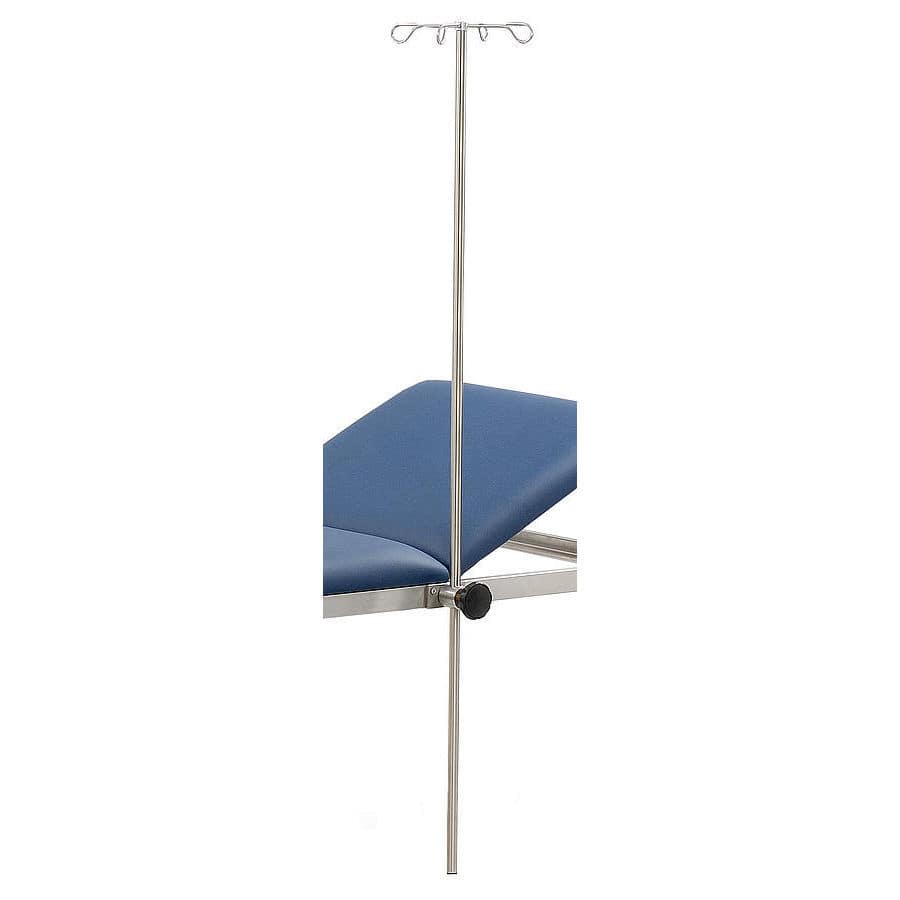

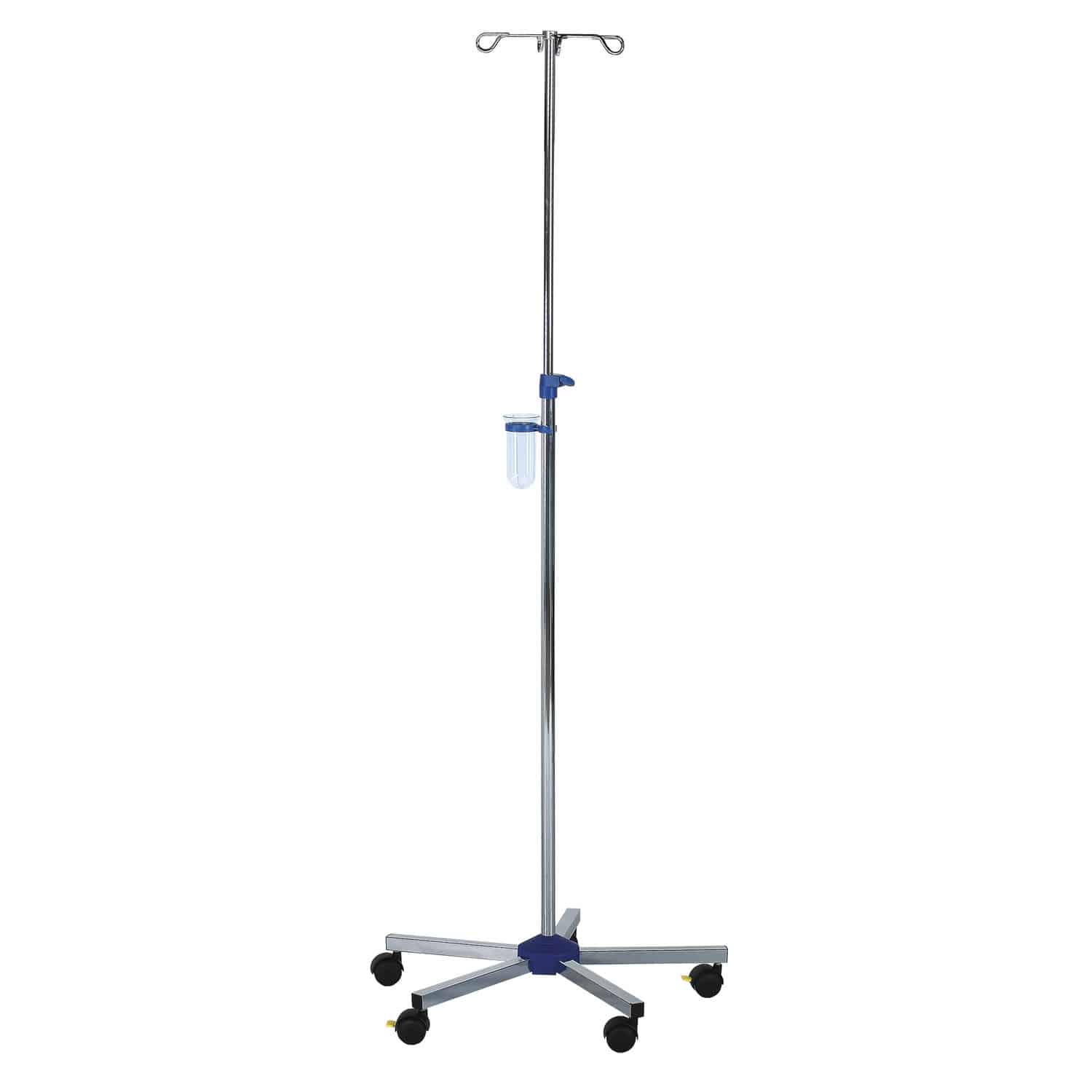

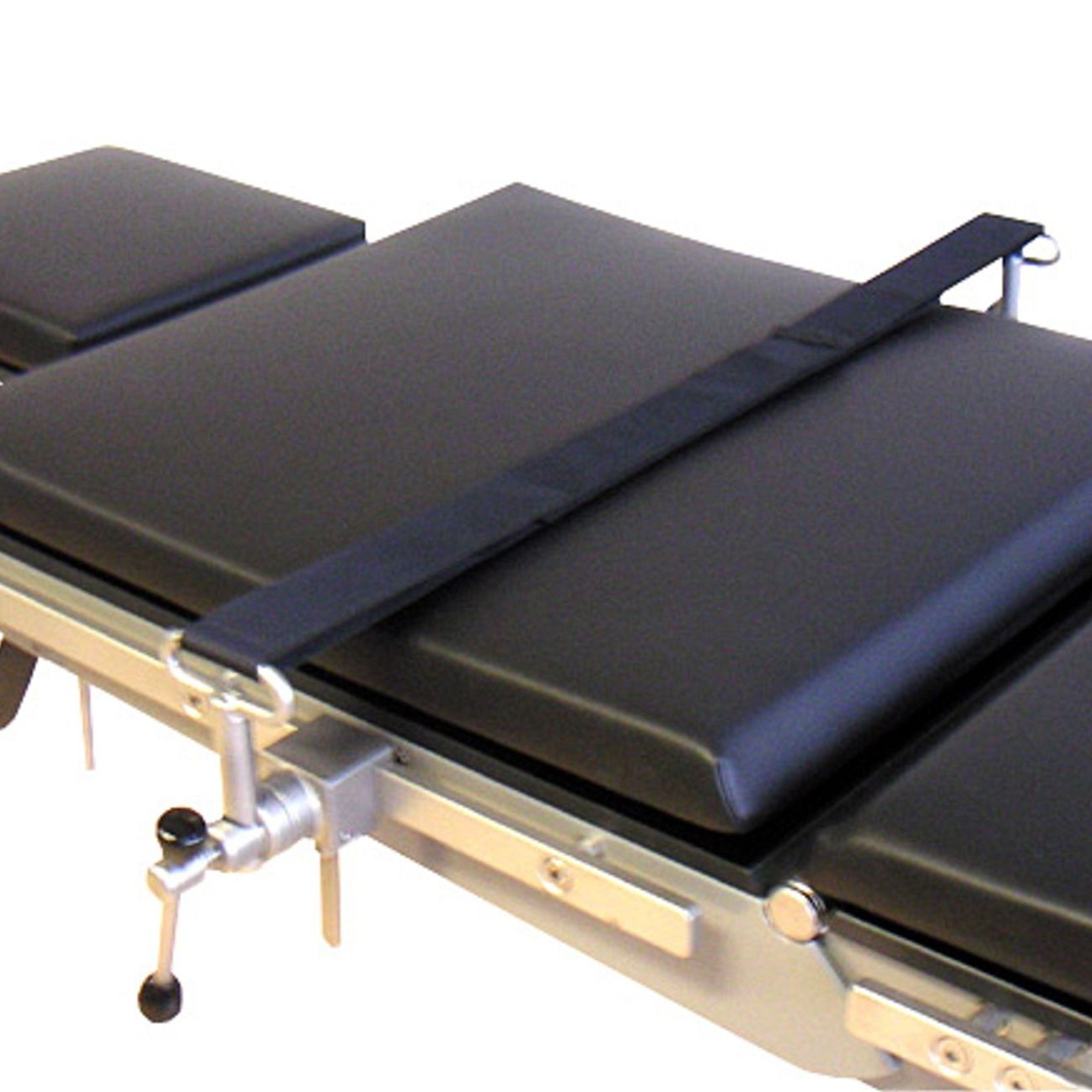

ACCESSORIES: Infusion holder, paper roll holder, larger castors (Ø125 mm), patient belt
OVERVIEW
Heights 650, 700,750, 800 mm
Widths 650 or 800 mm
Length 1900 mm (head section 500 mm, main section 1400 mm)
Two-piece tabletop
Continuously adjustable headrest +40°, with clamping rod locking mechanism
Four locking castors Ø100 mm
Max load 200 kg
Product weight 40 kg
Stainless steel frame
21 Upholstery colours available
