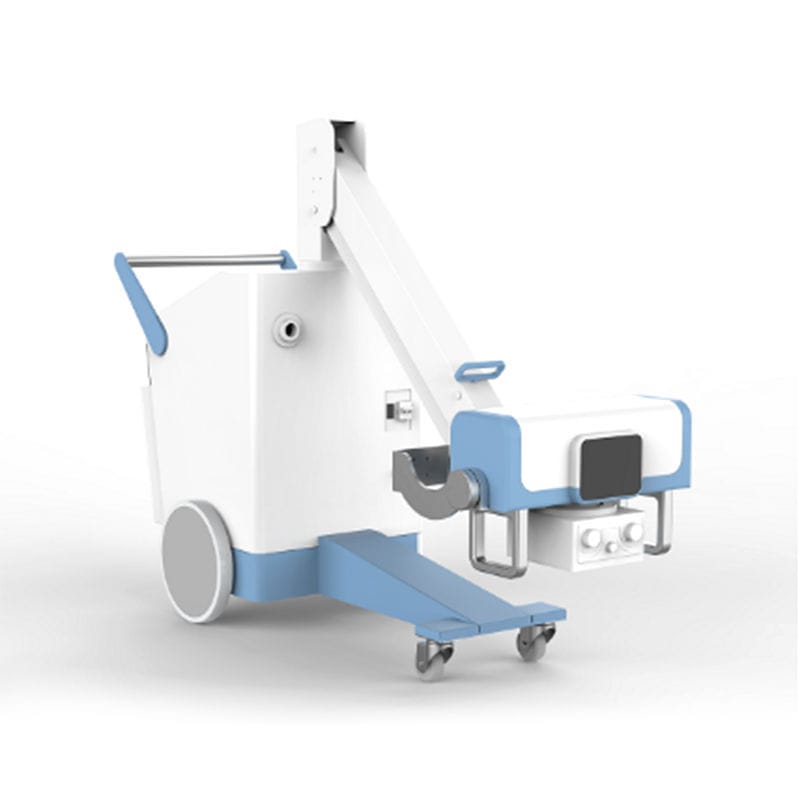

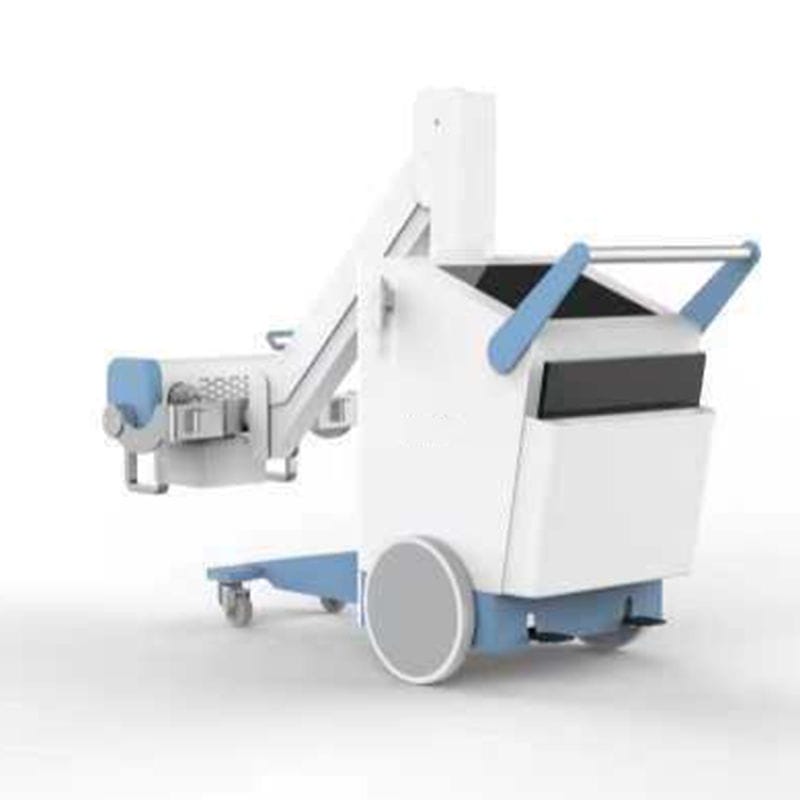

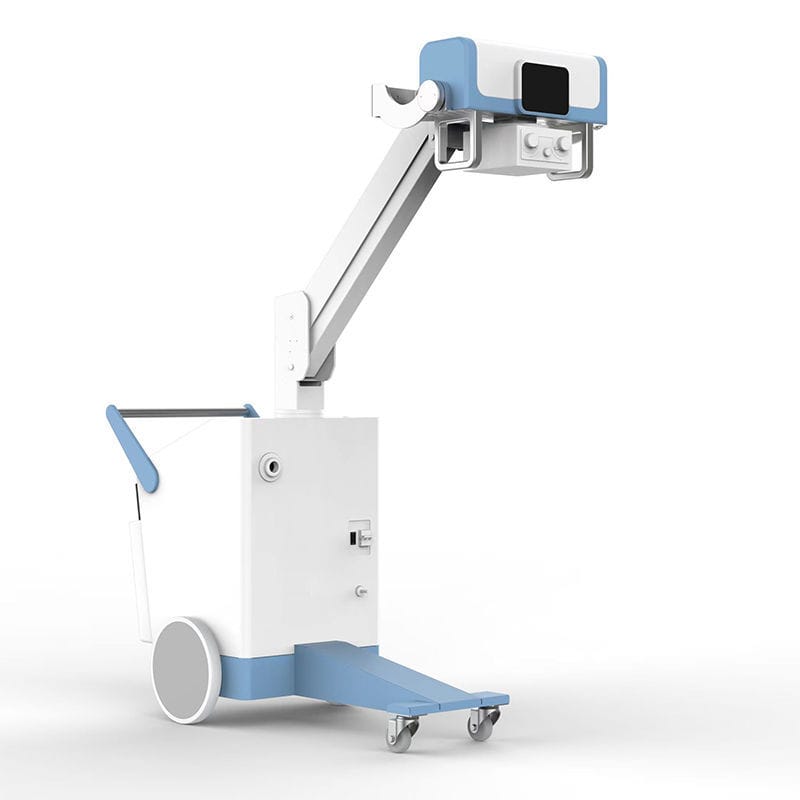

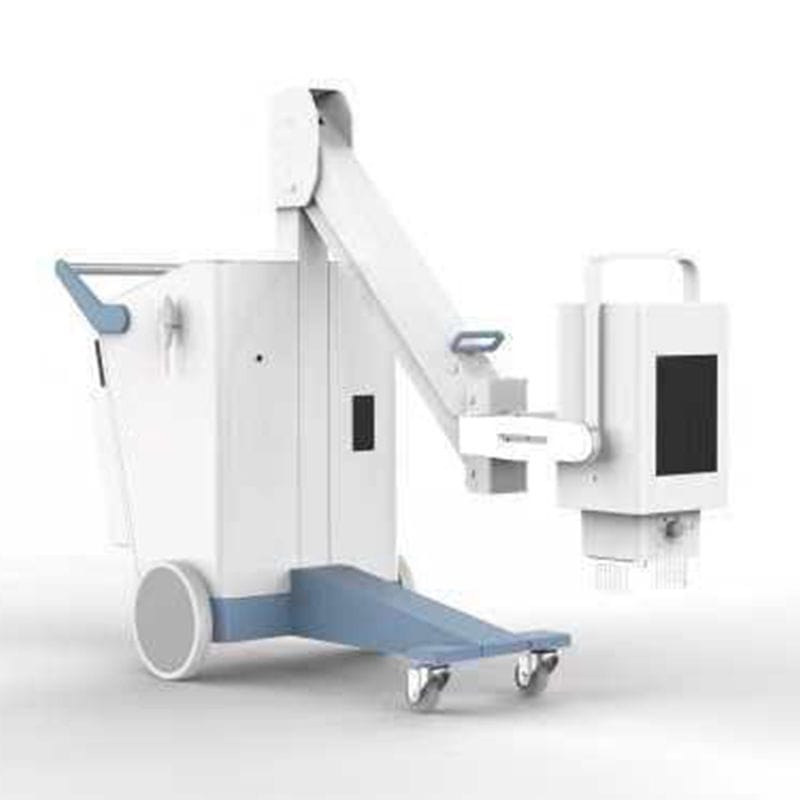

Efficient filtration and kV settings for the lowest dose possible Wireless flat panel detector Precise and clear imaging Impressively flexible range of movement Light and narrow (1000mm wide) Adaptable to various terrains High frequency generator (32kW) Long battery life (can last up to 30km) Superb anode heat capacity (300KHU) Intuitive user interface 19” LCD display Designed for an optimized workflow With an advanced image stitching algorithm
Flat Panel Detector
(1) Type of the detector: TFT monolithic amorphous silicon (2) Panel size of the detector: 430mm*430mm (3) Efficient imaging size of the detector: 17*17 inch (4) Acquisition pixel matrix of the detector: ≥3072×3072 (5) Pixel pitch of the detector: ≤146 um (6) Spatial resolution of the detector: 3.4LP/MM (7) Pixel gray scale: 16 Bit (8) Time of image acquisition and transmission: 3s
2. High frequency and high voltage generator
(1) Max. Output power: 32kw (2) Input power supply: 220 VAC single phase (3) Output voltage: 40～150kV (4) Tube current range: 10～320mA (5) Exposure time range: 1ms-10000ms (6) mAs range: 0.1mAs～250mAs (7) Support AEC,APR automatic exposure (8) Diagnostic self-test and display
(1) Rotation angle range of the column is -145°～180°, deviation±2°; (2) Up and down rotation angle of the bulb tube and the beam limiting device on horizontal axis: -90°～45°, deviation±2°; (3) Vertical moving stroke of the X-ray tube assembly focus: 95cm, deviation±2cm;
YSN Med Equip (Guangzhou Yueshen Medical Equipment Co., Ltd.) is a medical equipment manufacturer specializing in innovative and high-quality medical devices. Established in 2003, our company has since then been dedicated to designing, manufacturing, and distributing medical equipment for our customers all over the world. Over the past 20 years of development, our commitment to quality, innovation, and customer service has earned us a reputation as a trusted medical equipment manufacturer.
Our factory is located in Foshan, which is the closest city to our main office, it is about 4000 SQM, the total employees are over 100 people, and our annual output value is up to US$50 Million - US$100 Million. We constantly develop and manufacture advanced medical equipment ahead of the industry based on customers' needs, and strictly control product quality that is why our company's sales amount are continuously increasing year by year.
We currently have four categories of products, including X-ray Machines, Medical vacuum cushions,UV-C disinfection robots and a small animal imaging system. Our products are widely used in hospitals, clinics, and other healthcare facilities globally.
Product Application: Our products can be utilized in hospitals, hotels, restaurants, and other public places.
Production Equipment: We mainly design and manufacture UV-C disinfection robots, X-ray Machines, Small Animal Imaging Systems, and Medical vacuum cushions that diagnose, monitor, and treat diseases and conditions that affect humans and animals.
We have 20 years of experience in the medical field in 2006, we exported 125 sets of medical X-ray machines to Congo at one time, setting a record for exporting medical X-ray machines to foreign countries. In 2008, the same customer ordered another 150 X-ray units and 800 sets of surgical instruments. So far, we have established good cooperation with customers from 88 countries globally.
We help our customers to fully understand our product, and follow up every detail of the transaction so that our customers have an easy, enjoyable trading experience with us.
Vision：Committed to providing reliable medical equipment and services for global customers
To become a leader of the medical and health industry
Mission: Continually develop innovative medical equipment, enhance human health
"Enhance the innovation, bring the health life for people”
