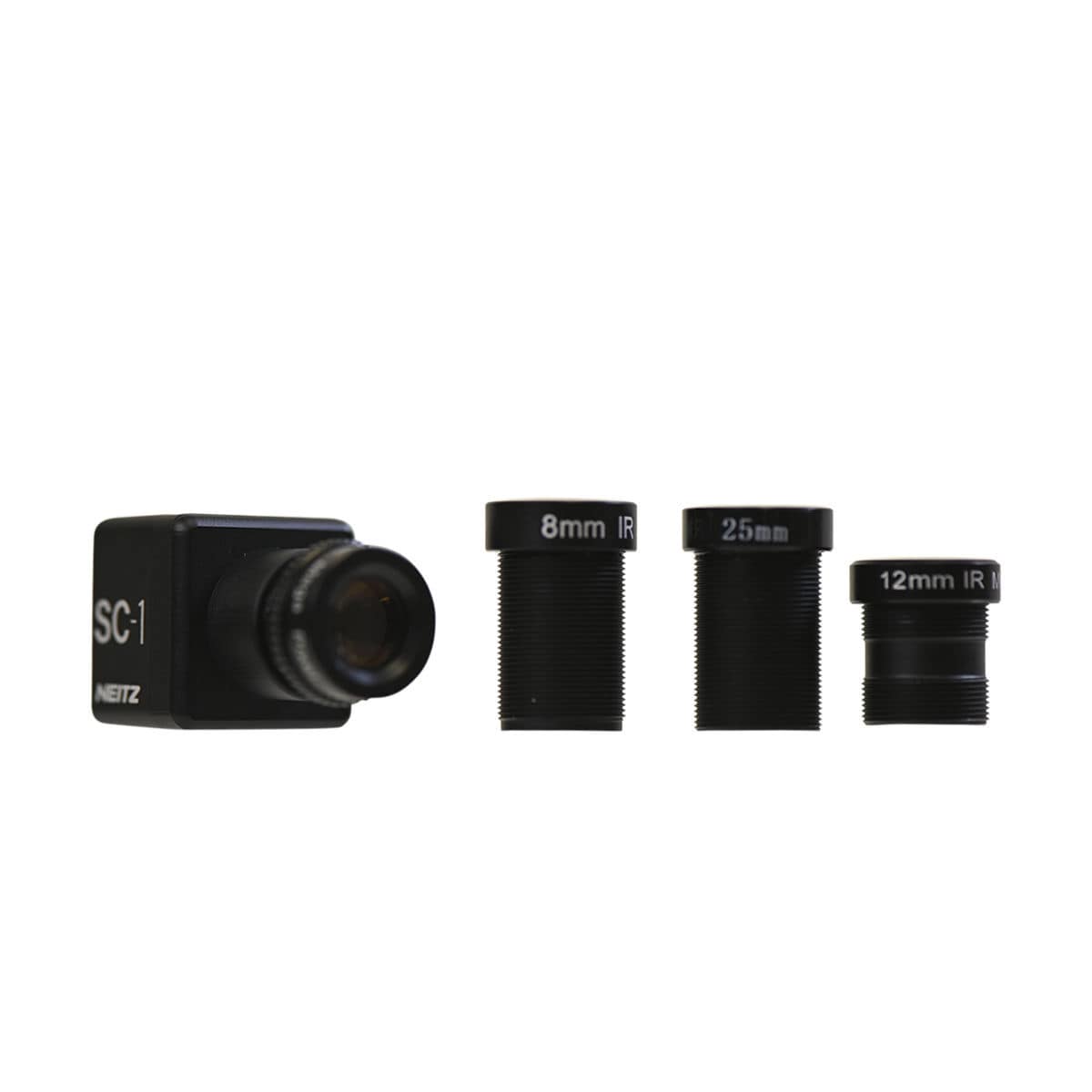

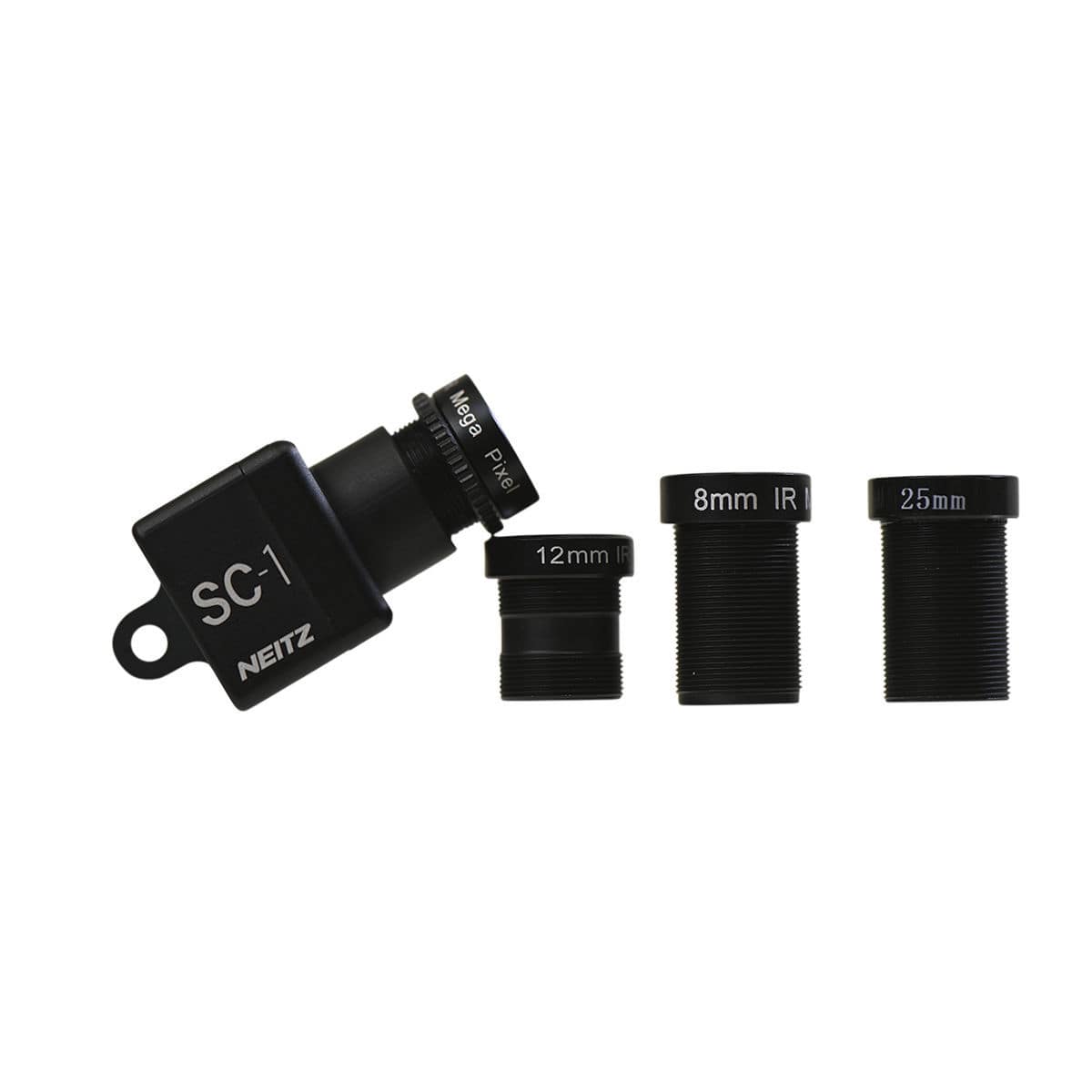

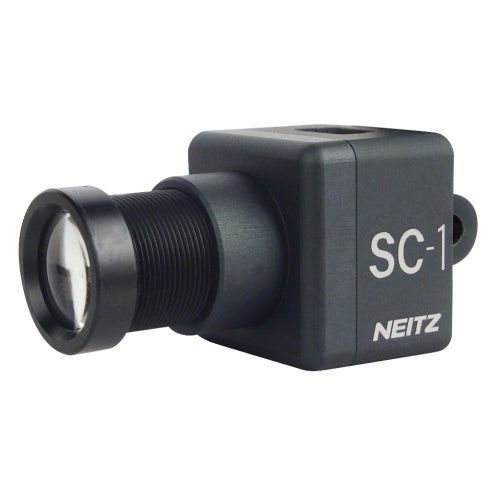

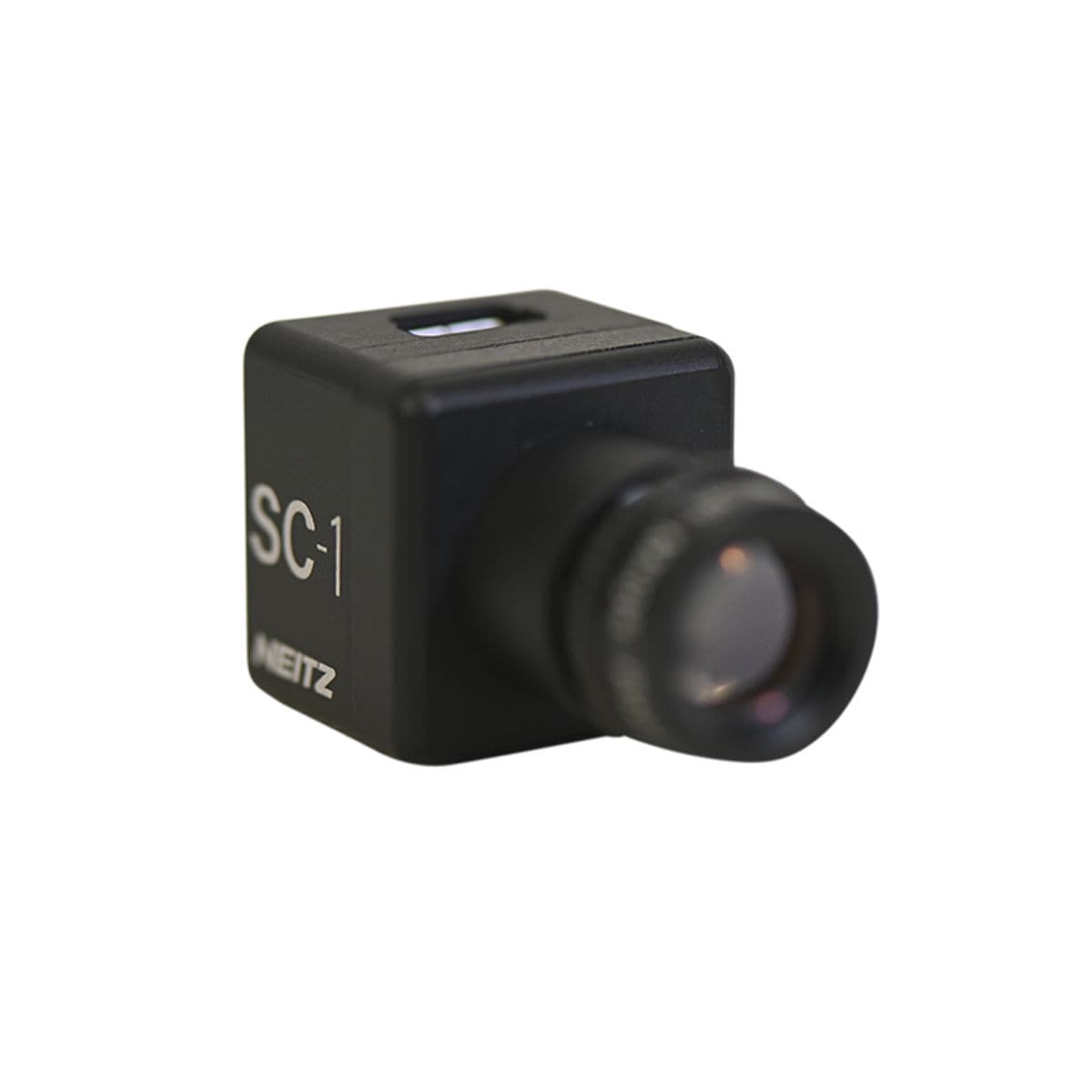

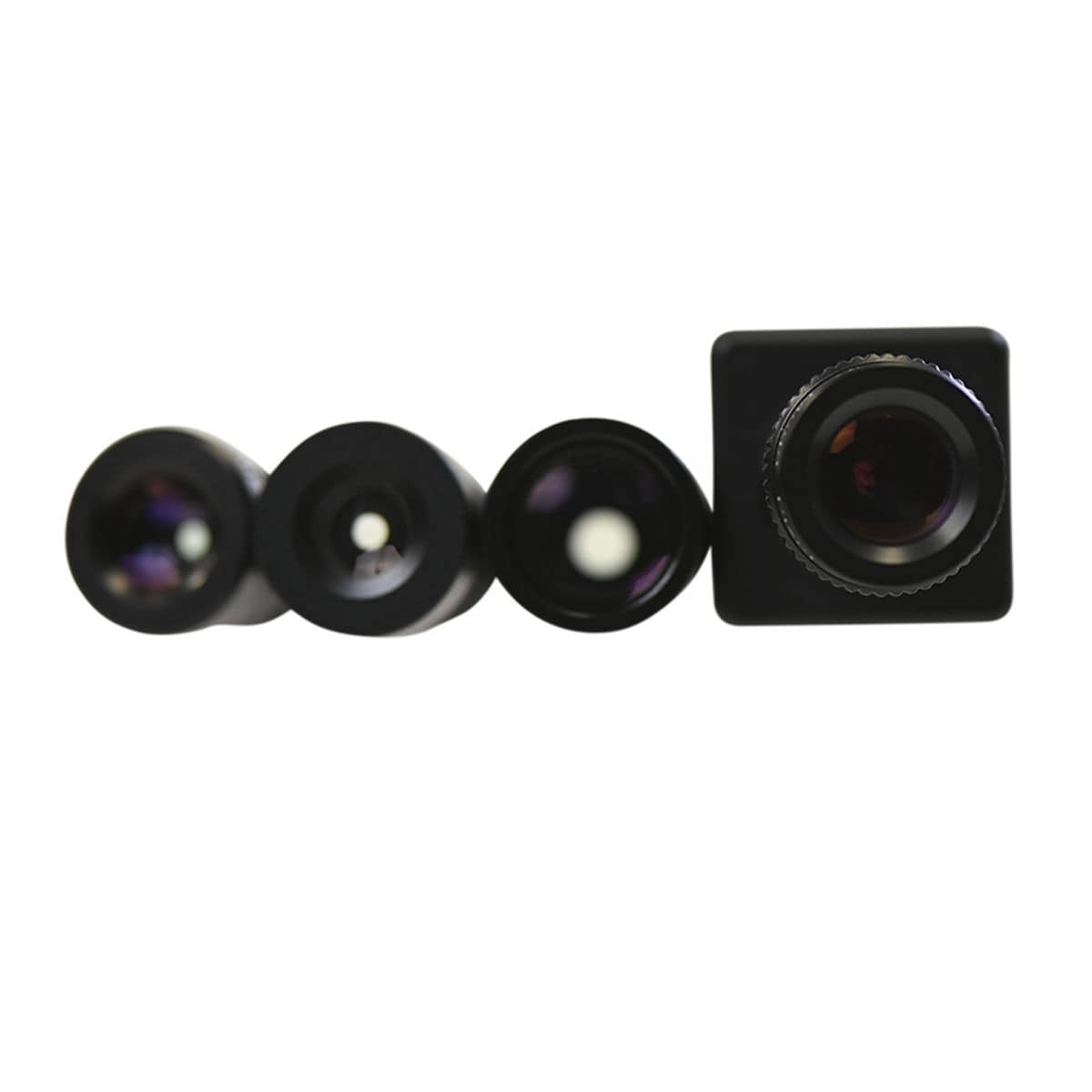

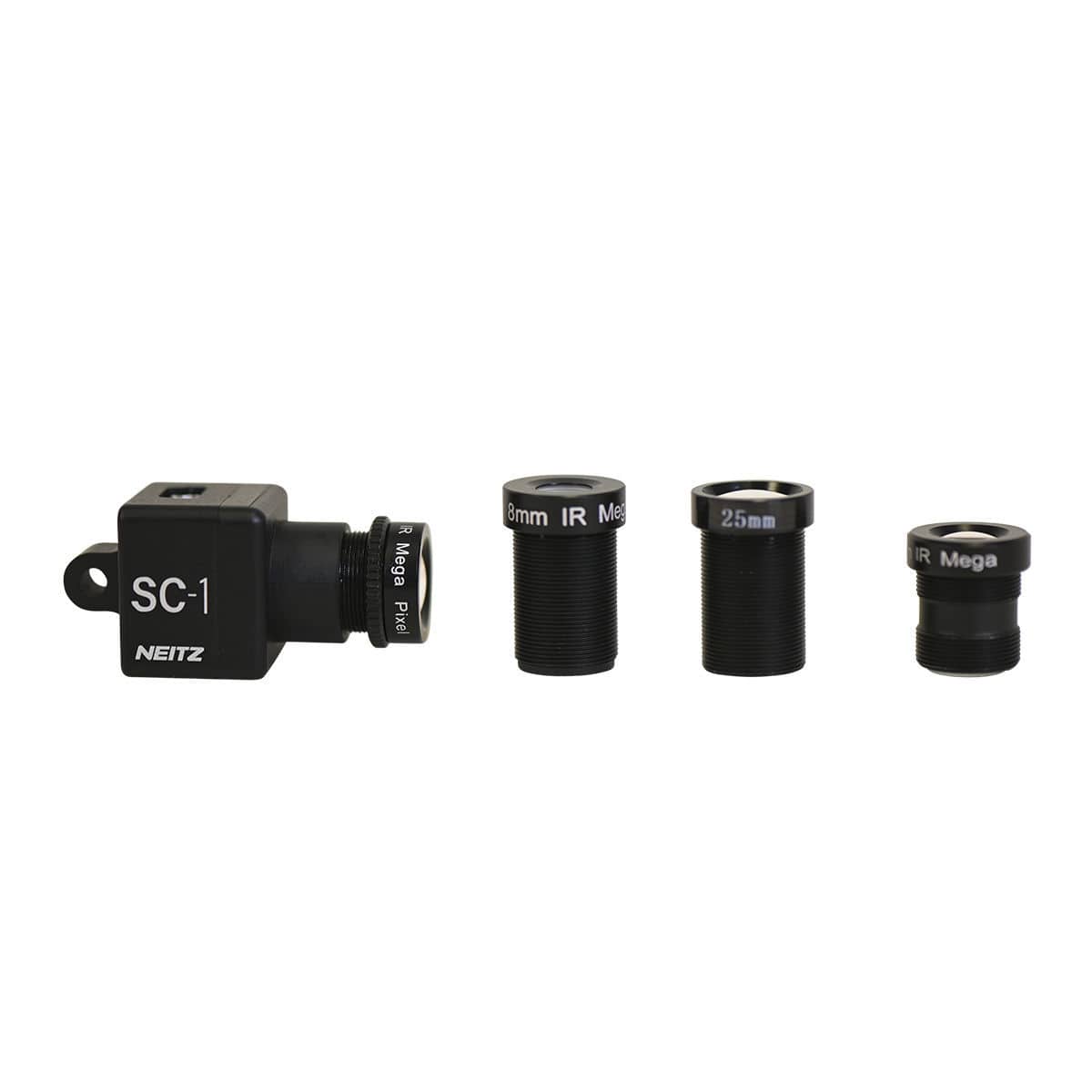

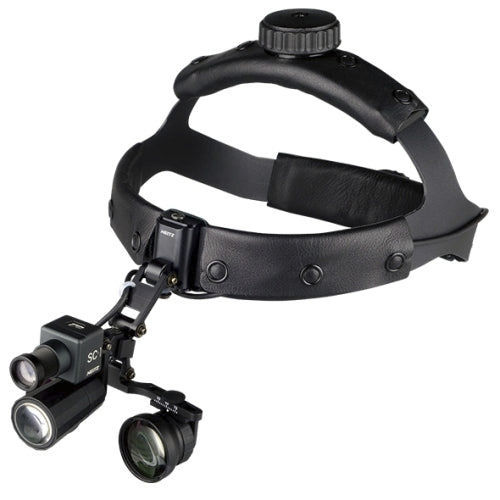

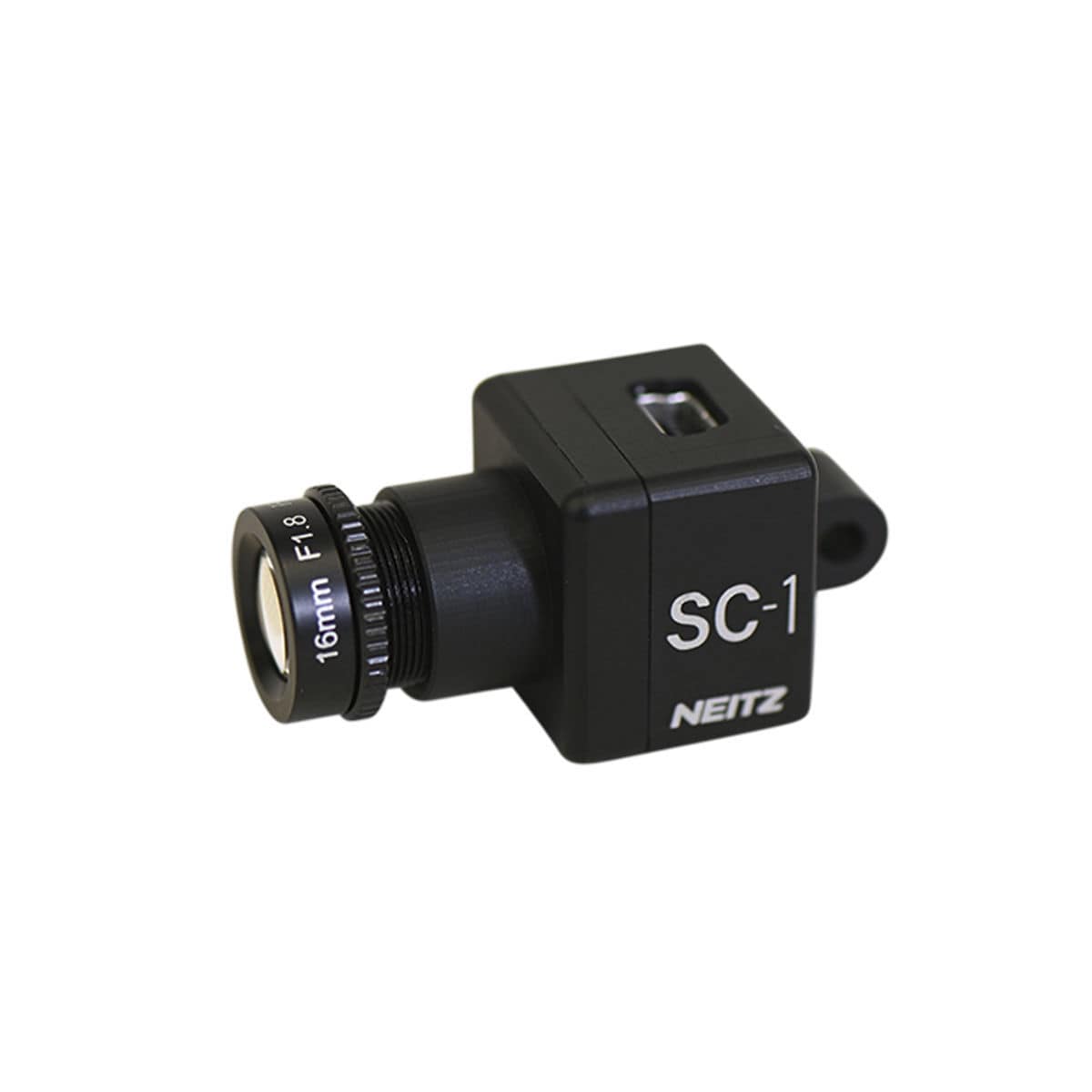

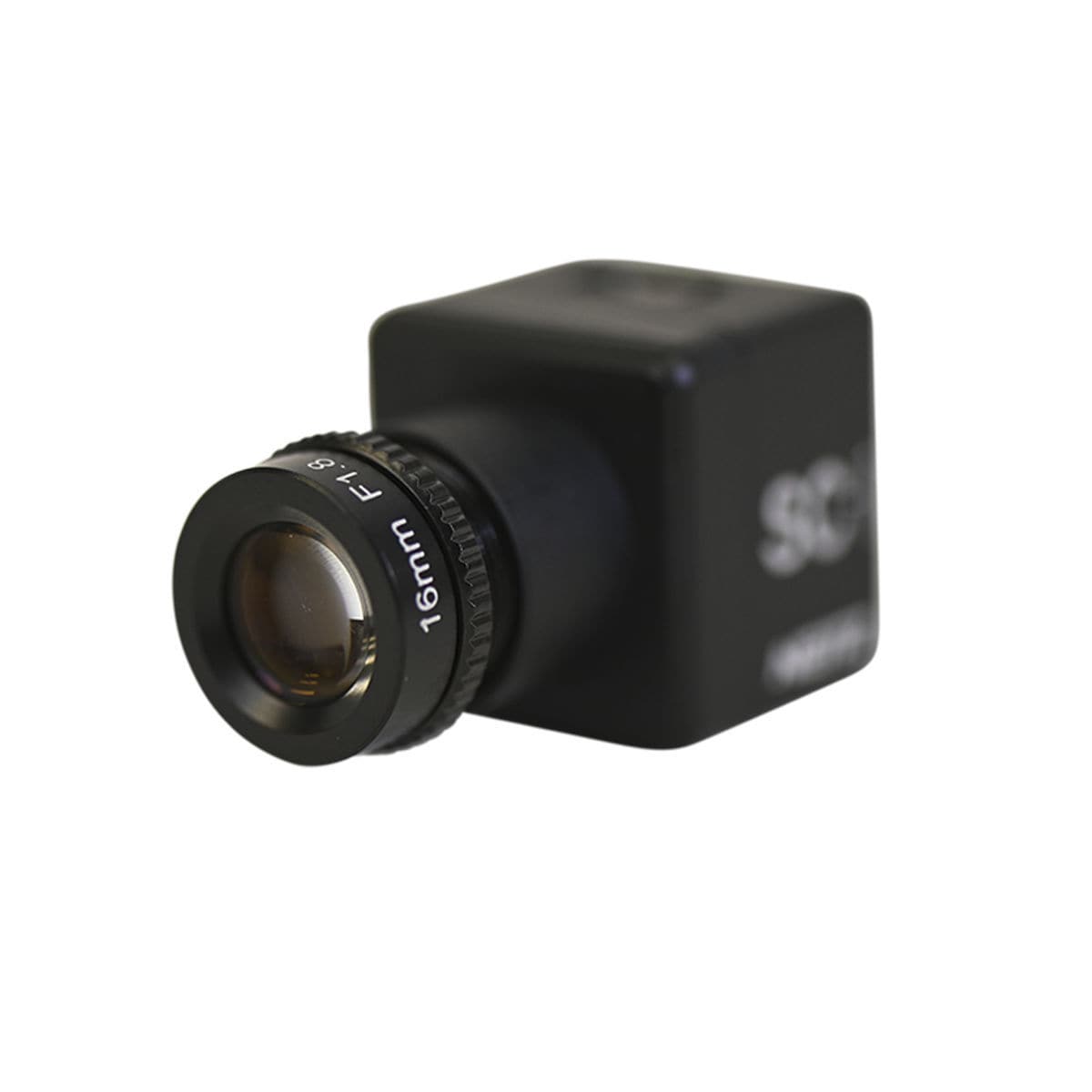

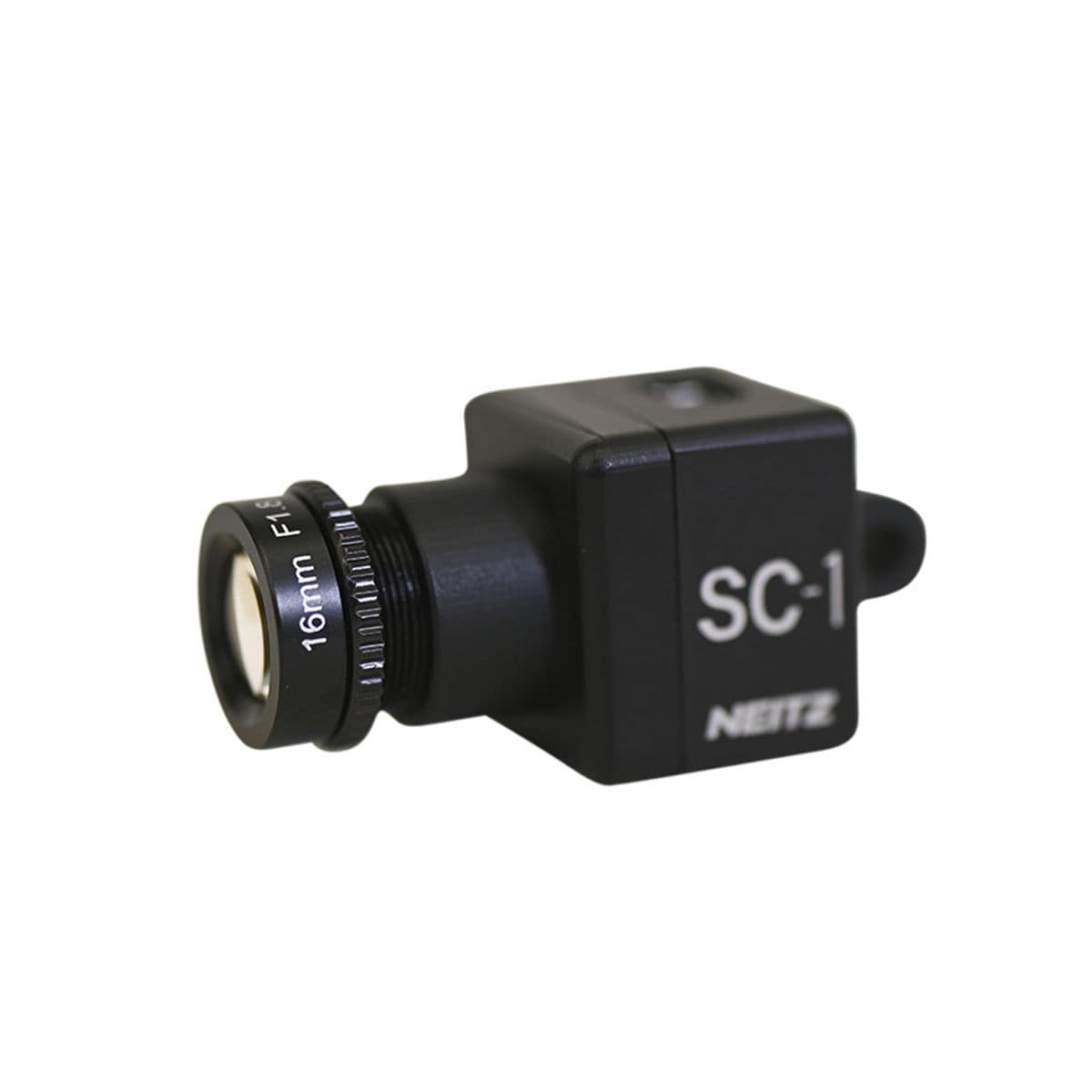

The SC-1 is a top-of-the-line surgical camera designed to complement the BL line of surgical loupes by Neitz. The SC-1 is the result of a 50-year history of expertise in the field of medical optics for ophthalmic practice and surgery. The SC-1 enables users to effortlessly capture high-quality images and videos from their point of view. Streaming surgery and prepping materials for conferences and academic meetings is a snap with the SC-1.
Specifications
CMOS Colour Imaging Sensor IMX291(Sony) 1/2.8 inch 6.46nmm diagonal
Transfer Method Progressive
Shutter System Rolling Shutter
Output Image Format - MJPEG
Data Transfer System - USB2.0 (Hi Speed)
Max. Frame RateVGA 640×480 Pixels: 30fps
HD 1280×720 Pixels: 30fps
FHD 1920×1080 Pixels: 30fps
Sensitivity (F5.6) 1300mV CMOS sensor characteristics typical value
Driver Not needed. USB Video Class (UVC) Windows10

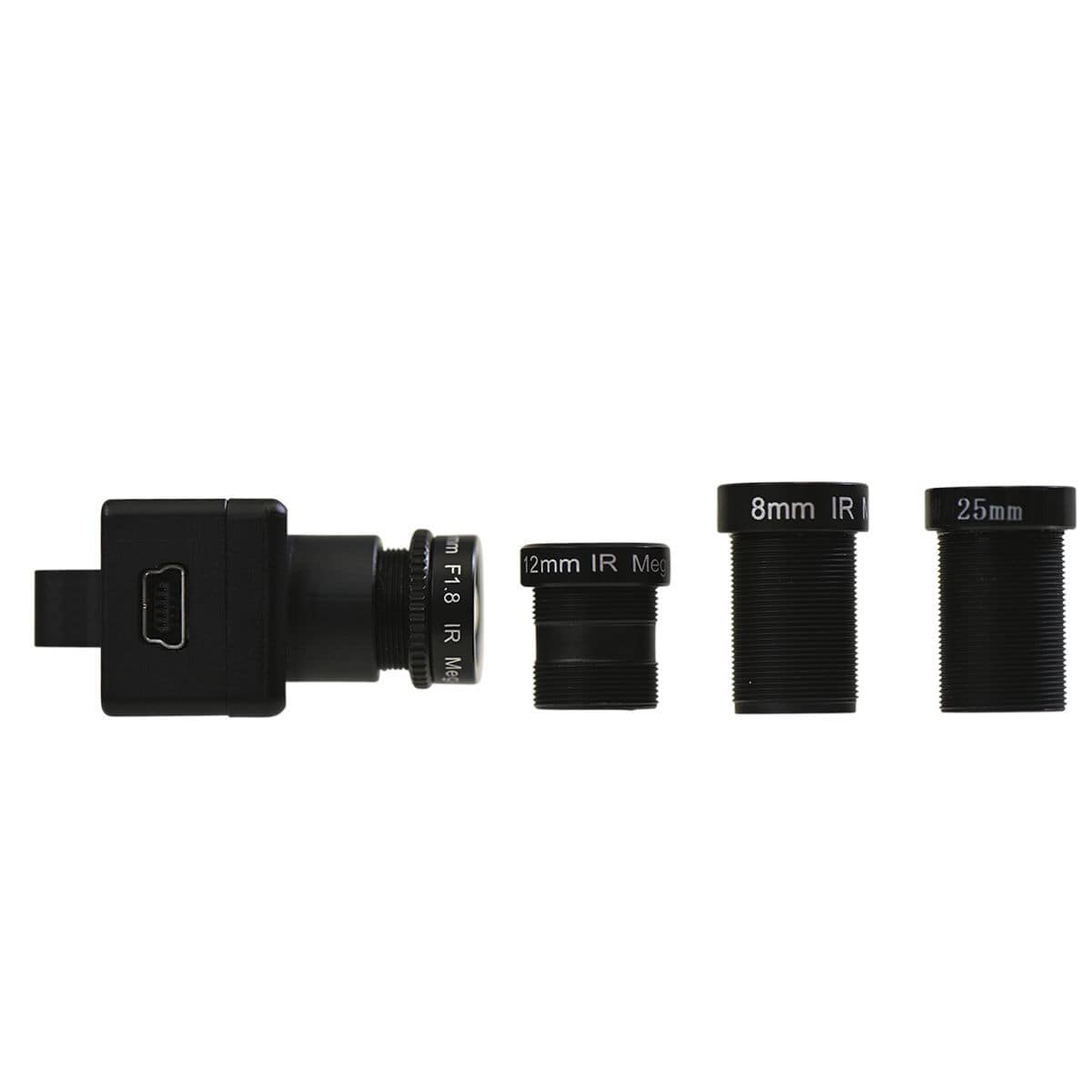

Interface USB Mini-B
Main IPS Functions Adjustment: Exposure (Auto & Manual), Colour Temperature (Auto & Manual), Gain, Saturation, Sharpness, Gamma Correction
Power Supply Power Supply Voltage 5.0 V(USB bus power)
Max Power Consumption Approx. 200 mA
Camera Properties Brightness, Contrast, Hue, Vividness, Definition, Gamma, Gain, White Balance, Backlight Correction
