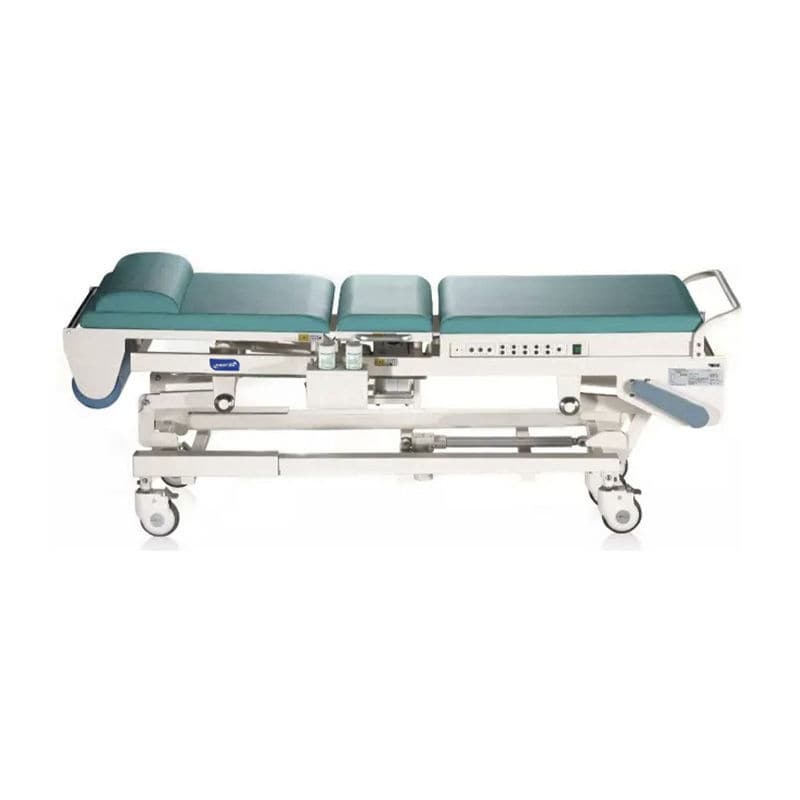

Ultrasound imaging examination couch
YA-EC-U02
Main features
- E-intelligence bed sheet replacing & deviation-correcting system
- Ultrasonic coupling agent heater
- Vertical adjustment
- Backrest adjustment (optional)
- Hip section adjustment(optional)
- Trendelenburg/Reverse trendelenburg(optional)
- Horizontal adjustment(optional)
Technical parameter
Overall size: 1900*650*590-840 mm
Back section adjustment: 0 ~85°
Height adjustment: 590-840 mm
Head overall slope and leg overall slope: 0 ~12°
Adjustment value of the height of the hip: 0~110mm
Horizontal movement - 0~420mm
Whole bed weight: 133Kgs
Loading capacity:175kg
