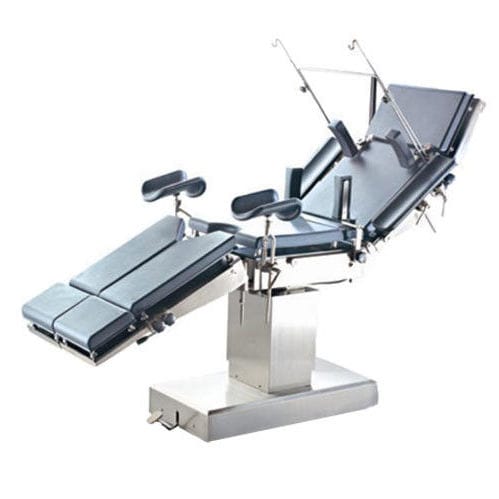

Orthopedy operating table YA-06E
Characteristics
applications orthopedy
components with eccentric column
features adjustable height, radiolucent
operation electric
Description
Main features

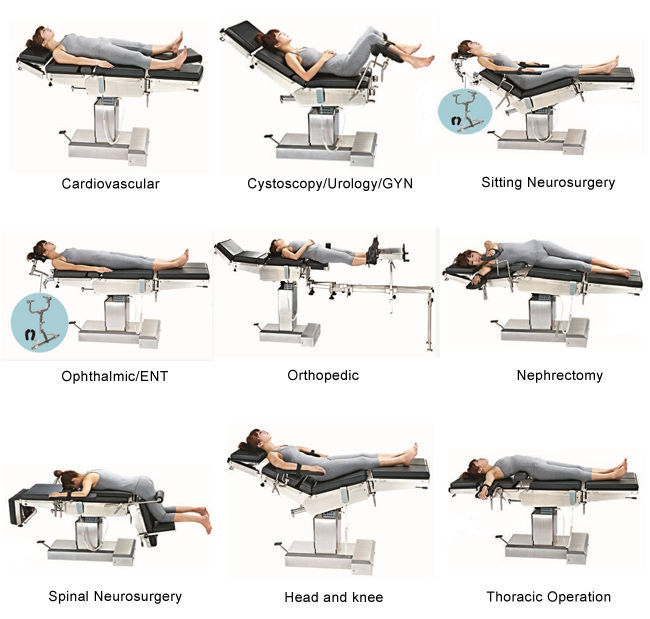

- Contours to virtually all patient postures with a five-section tabletop.

- Accommodates virtually all patients with generous height ranges.

- Wire controller for different movements and Column control panel with locking function for movements.

- Table top height and backrest adjustment, lateral tilts, Trendelenburg and reverse Trendelenburg tilts are performed thanks to wire hand controller.

- The head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs.

- Divided, two parts leg rest segments are adjusted by means of gear transmission.

- The structure is made of SUS304 mirror stainless steel.

- The table base is controlled by a foot lever.

- The antistatic, seamless mattresses are removable from the segments of the table top and resistant to disinfecting agents.

Technical parameter

Model - YA-06E
Overall size - 2150*500*750-1000mm
HI-LOW - 750mm-1000mm
Head board fold upward and fold downward - ≥30°/≥90
Back board fold upwardand fold downward - ≥45°/≥15°
Leg board fold downward and fold outward - ≥90°/≥90°
Trendelenburg and reverse-trendelenburg - ≥25°
Left and right tilting angle - ≥15°
Loading capacity - 200kgs
Waist board lifting - ≥110mm
Power - AC220V 50HZ Input power:300VA
Packing - 148*76*95cm=1.1M3 G.W.:280kgs
Zhangjiagang Medi Medical Equipment
0 Followers
About the Company

Zhangjiagang Medi Medical Equipment Co.,ltd, founded in 1995, with more than 20 years experience in developing hospital furniture, is one of the largest manufacturer of hospital bed, patient stretcher, medical cart and other related hospital furniture in China or even Asia.
Through scientific management complying with ISO9001&ISO13485, by adopting advanced facility like Germany TRUMPF CNC, Japan OTC Robot Welding, Auto-power coating line with Swiss GEMA gun , Medi focuses on providing brand quality product with CE approval.
Headquartered in Zhangjiagang nearby Shanghai, with subsidiary oversea offices in Hungary, Dubai, Thailand, New Zealand, Kenya, Colombia, Medi acting professionally and swiftly for both pre-sales and after-sales.
The products are widely accepted by global clients, such as UK RIE hospital, UNIVERZITETNI KLINICNI CENTER, Kokilaben Dhirubhai Ambani Hospital, Singapore National University Hospital etc.
