Anesthetic gas scavenging system
3212610

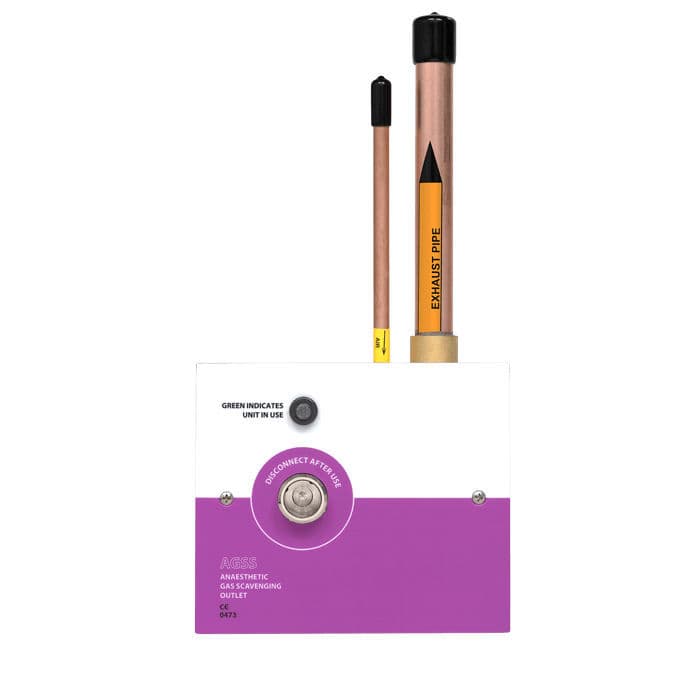

The Silbermann jet scavenging inlet, venturi type, is designed for
safe removal of surplus anesthetic gas and explosive
gas mixtures from the operating theater.
The Silbermann jet scavenging inlet is designed to meet
the latest and most rigid NFPA99 requirements.
The scavenging inlet assembly uses compressed air
which creates suction (Venturi) and propels the contaminated air
to the outside atmosphere.

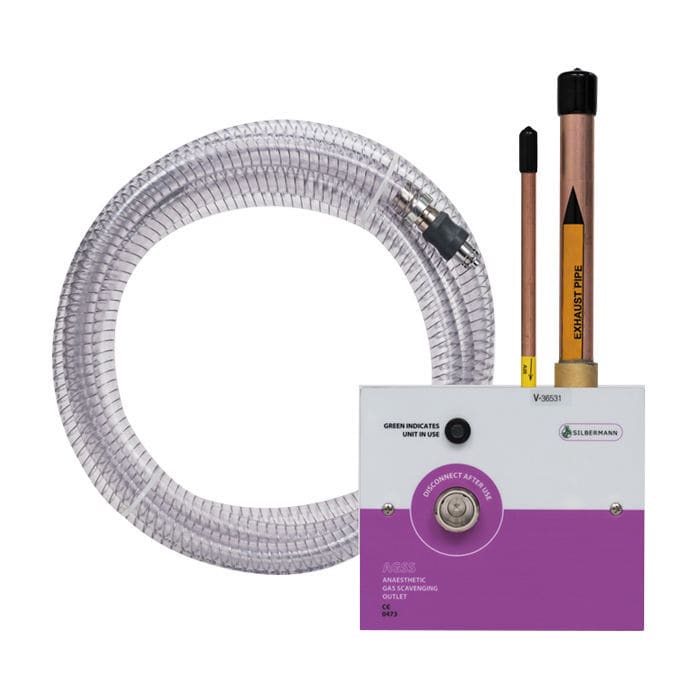

The jet scavenging inlet can be supplied recessed,
panel-mounted, or exposed, with or without hose assembly.
FEATURES
■ Operation based on compressed air -
No need for a central AGSS system
■ When the probe is connected, green
a pneumatic indicator showing the system is in use
■ Very quiet operation
■ Automatic shut off when the probe is disconnected
■ Flow and vacuum adjustment

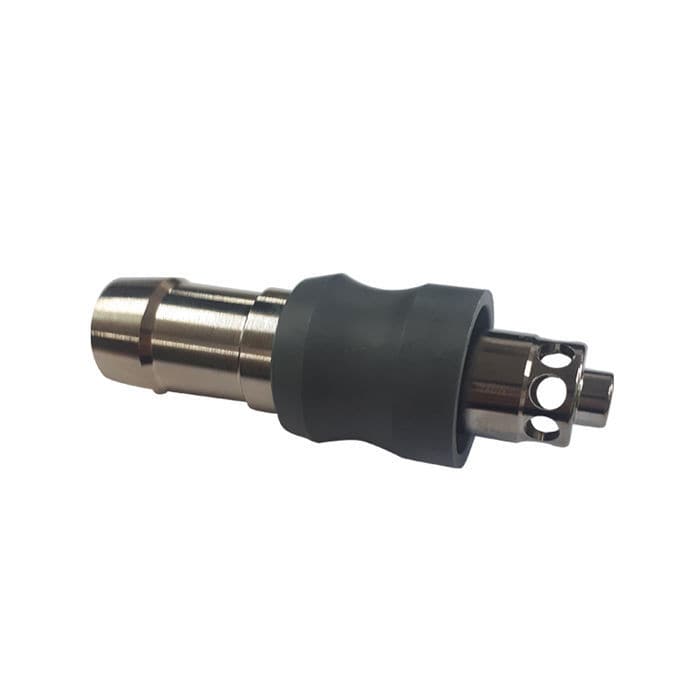

■ Quick connect locking mechanism.
TECHNICAL DATA
■ Inlet pressure: 3.5-5 bars
■ Inlet flow: 40 LPM
■ Free air suction capacity:
Adjustable 35 -80 LPM
■ Vacuum level: Adjustable 20-50 cmH2O
■ Inlet pipe diameter: OD 3/8”
■ Exhaust pipe diameter: OD 7/8”
■ Material of construction:
■ Box: Baked Painted Steel
■ Front Panel: Anodized Aluminum
■ Injector: Brass
MEDICAL GAS SYSTEM STANDARDS:
■ NFPA99
■ ISO 7396
■ G-01
■ HTM 02-01
SILBERMANN’S QUALITY MANAGEMENT SYSTEM:
■ EN ISO 13485-2016
■ ISO 9001-2015
■ CE marked
