The SILBERMANN LEO-MN Manifold incorporates the basic necessities for distributing and monitoring medical gas throughout a facility.

This automatic changeover unit is designed for a continuous supply of gas at the pressure of up to 8 bars (higher outlet pressure upon customer request) and includes a mechanism that switches the supply from the \"in service\" bank to a \"reserve\" supply bank when the \"in service\" bank is empty.

FEATURES & BENEFITS

The SILBERMANN Automatic changeover unit is designed for a continuous supply
of gas at a pressure of up to 8 bars (higher outlet pressure upon customer request).

The panel includes a mechanism that switches the supply from the “in-service” bank to a “reserve” supply bank when the in-service” bank is empty.

After rotating the lever and replacing the empty bank cylinders, the previous
\"in service” becomes the “reserve” bank for the next operation.

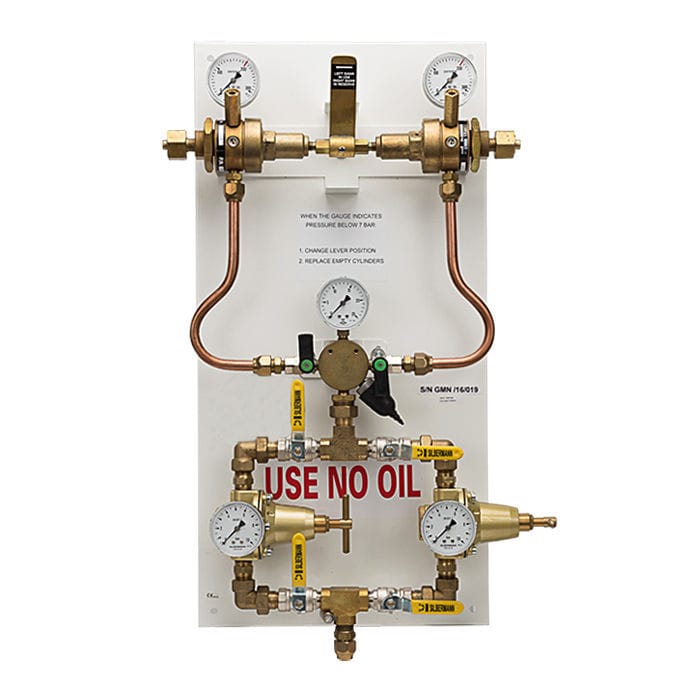

The panel is equipped with two manifold pressure regulators;(in case of
malfunction), mid-range gauge, line pressure regulators w/bypass valves, all mounted on
a white baked painted steel panel.

Safety valve @ 6 bar supplied with the panel.


TECHNICAL DATA

Panel material – steel.

Dimensions – 70x35 cm.

Panel finish – baked on powder coated.

Piping System: All materials are oxygen-compatible.

Changeover mechanism: pressure difference

Output connections for local alarms:
One set of dry contacts N.O

Flow Capacity: Oxy/medical air (4 bar) - 90 m³/hr.

High-pressure regulators inlet – G 3/4” Female nut.

Max inlet (cylinder) pressure 200 bar.

Standard oxy. Outlet pressure 4-5 bar.

Standard Outlet pressure for Nitrogen is 8 bar.

Higher pressure is available upon request.
