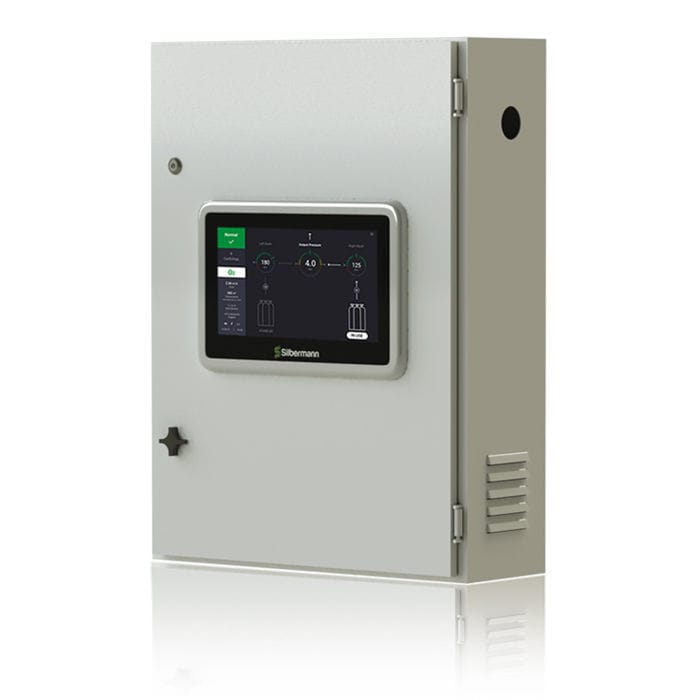

The SILBERMANN Fully Automatic Medical Gas Manifold system is a new approach to medical gas management. It employs advanced electronic system technology that redefines the state-of-art for modern healthcare facilities.

We designed this system to be reliable and to supply continuous gas flow and smooth automatic bank switchover by means of a pneumatic shuttle valve.

The Mazor-AU is designed for backups or as a main supply system where central systems are not available.


FEATURES & BENEFITS

Continuous supply and smooth automatic bank switchover, without pressure
fluctuation using a pneumatic shuttle valve.

Maintenance friendly- designed to enable maintenance during operation without disrupting the gas supply.

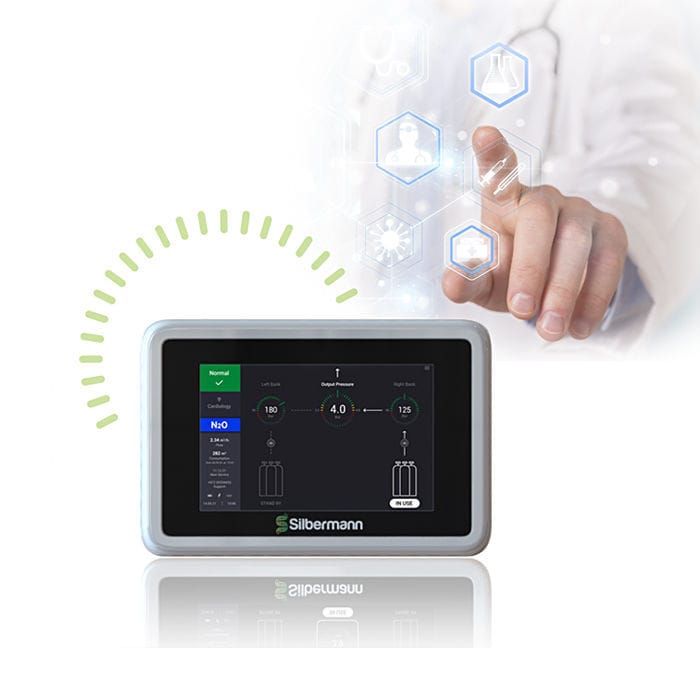

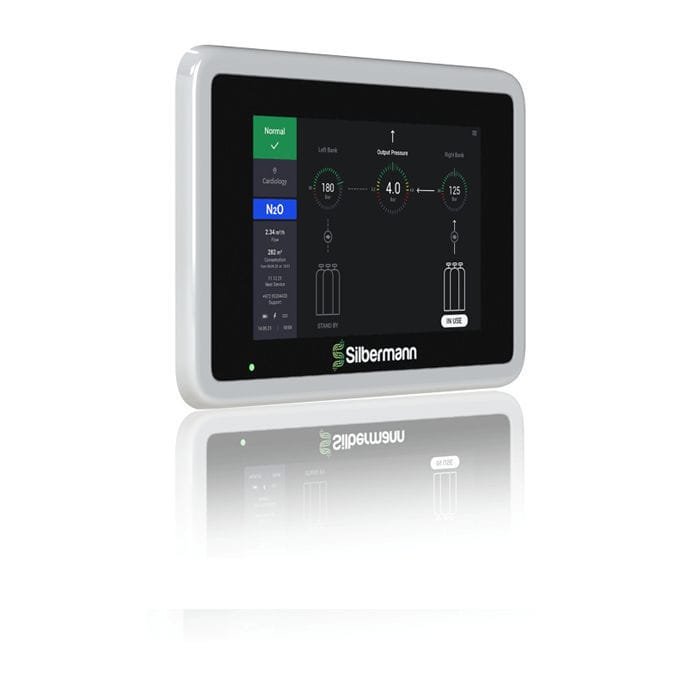

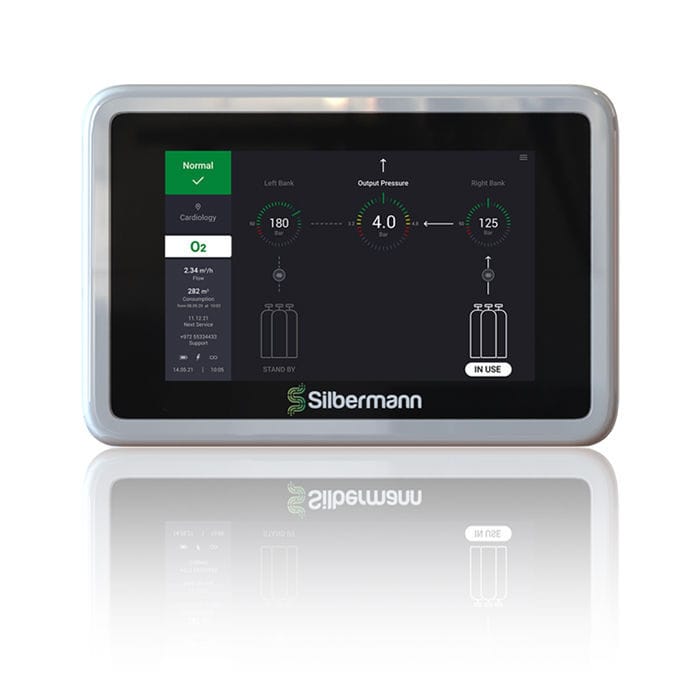

LCD 12” touch screen display.

Graphically & digitally display the actual status of each source-“In use” or “Stand by”.

Visual & audio alarm signals in case of change between banks, “Below min” and
High/Low line supply pressure.

Leak detection from manifolds on Stand-By mode.

Secured Ethernet-based network communication between all units.

Unique secured authentication of each unit to avoid fake/masking of alarms.

A color trend arc showing the gas pressure status on the main line and at each bank
Optional- display of heaters during idle and active states.

Automatic adjustment of screen brightness (day & night mode).

Event logging, recording all alarms and panel activities.

Periodical maintenance alert.

Customizable text & language.

Alarm test & mute buzzer buttons.

Advanced Communication:

Ethernet Modbus.

Remote monitoring through the building.

management system available.

Option for remote viewing.

through a mobile device or remote computer.
