Anesthetic gas scavenging system

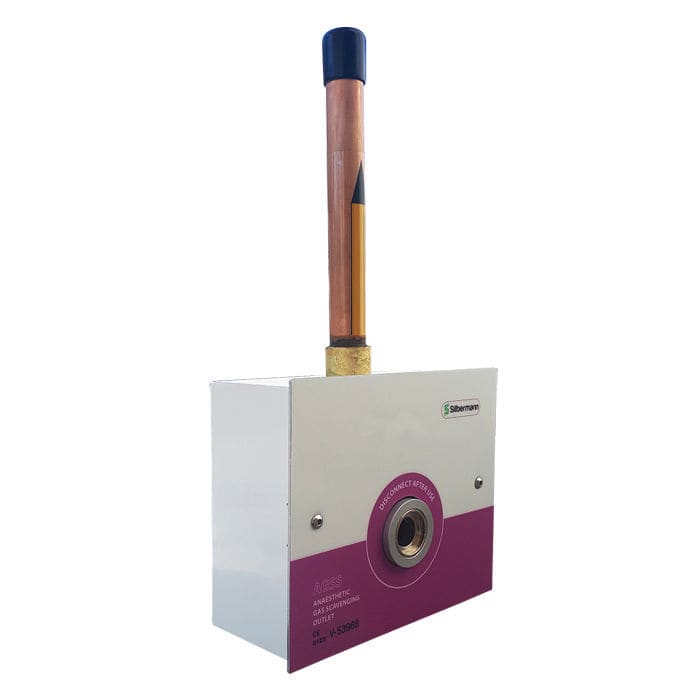

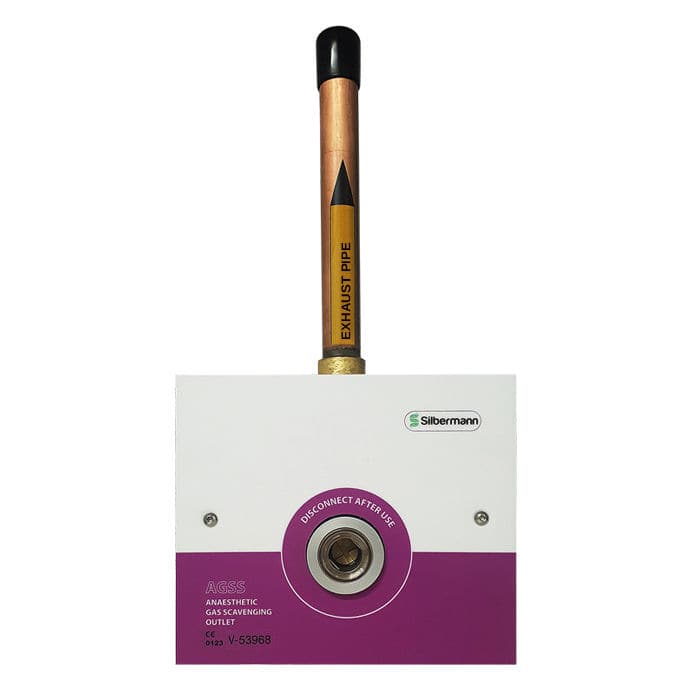

The SILBERMANN Anesthetic Gas Scavenging Inlet,
Non-Venturi type is designed to remove safely
surplus anesthetic gas and explosive gas mixtures
from the operating theatre.
Its purpose is to avoid long-term health hazards
for the exposed medical staff.
The Inlet is a quick connect type, connected to
a central AGSS system.
It withstands pressure tests without the need
for a dedicated plug.
FEATURES AND BENEFITS
■ Operation based on a central AGSS system.
■ Internal adjusting valve ensures the required vacuum flow.
■ Very quiet operation
■ Automatic shut off when the probe is disconnected
■ Locking mechanism quick connect
■ Easy installation
■ Easy to maintain
TECHNICAL DATA
■ Inlet pressure: 3.5-5 bars
■ Outlet flow: 40 LPM
■ Free air suction capacity:
■ Adjustable 50 LPM
■ Vacuum level: Adjustable 20-50 cmH2O
■ Exhaust pipe diameter: OD 7/8” nominal 20 cm long, K type.
MATERIAL OF CONSTRUCTION:
■ Box: Baked painted Aluminium
■ Front Panel: Aluminum
APPLICABLE STANDARDS:
■ ISO 9170-2
SILBERMANN’S QUALITY MANAGEMENT SYSTEM:
■ EN ISO 13485-2016
■ ISO 9001-2015
■ CE marked
MEDICAL GAS SYSTEM STANDARDS:
■ ISO 7396-1
■ NFPA99
■ HTM 02-01
■ G0-1
