Product Working Principle: High voltage generator provide high voltage on both ends of the X-ray tube filament and a metal target, X ray tube cathode filament produced a large number of electrons in a vacuum tube high-speed movement, hit the metal target, to produce x-rays. In hospital when using dental X-ray take image, X-ray generator emit x-rays through the body teeth, muscle groups such as density, will be through the body's tissues with image information of X rays by dental medical film image receiver, show the density of different tooth tissue images, used for clinical diagnosis.

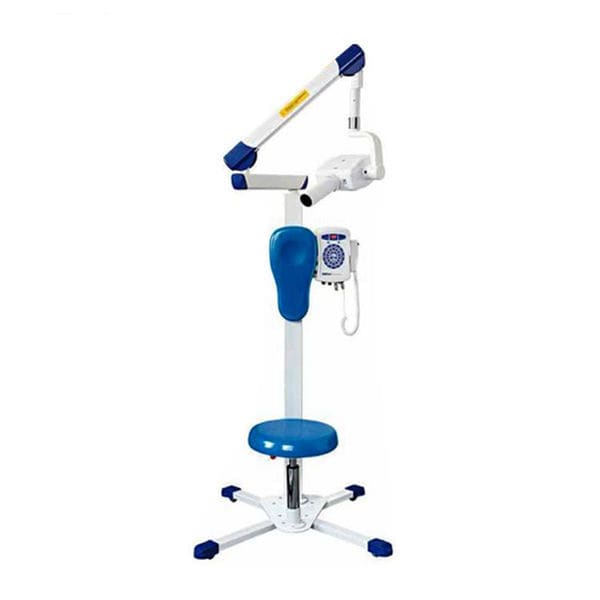

Application: 1. The scope of application: dental X-ray machine get the human oral cavity image by x ray photography used for medical imaging diagnosis. 2. The scope of using: Need trained oral dentists or technician to use. For adults and children's Diagnosis. Description: Use the international advanced technology, high-efficiency, clear imaging Low leak radial, is only l %of national standard Light touched button, controlled with microcomputer, only press one button to select the exposure parameter, fast and accurately Developing in light room, image in one minute, the doctor can diagnose conveniently for maximum Pneumatic up-down seat, more convenient and more comfortable It is for the use of the digital imaging system of mouth Specification: Power supply: AC220V+ 10%, 50Hz, 1KVA Tube current: 8mA Focus size: 0.8mm Total filtration: 2.5mmAL Exposure time: 0.2-4sec Leak radiation: Outside one meter ≤ 0.002mGy/h (National standard: 0.25mGy/h) the Base can choose floor(fixed) mounted or mobile type
