infant manual resuscitator
STH2MRAIABR2
Provide assisted ventilation to people who are either not breathing or are having trouble breathing.
The bags need to be compressed to force a volume of air into the lungs

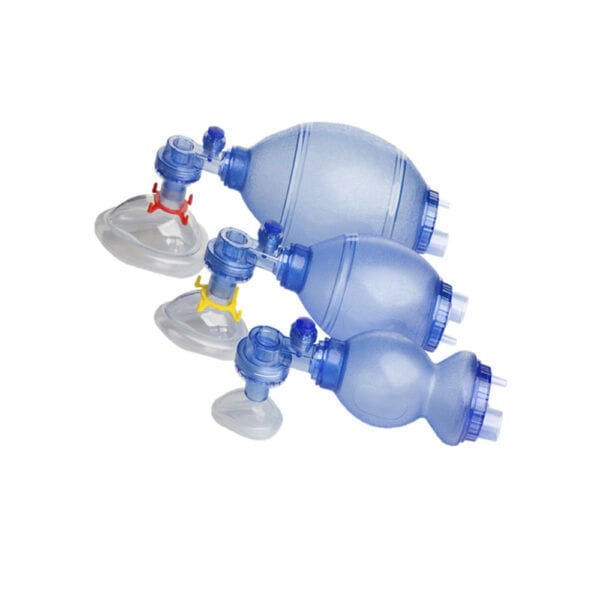

Consist of a bag, adapter and one-way valve. The bag is the main part of the device.
It can be attacked directly to an endotracheal tube or a mask using the adapter.
The bag also has a one-way valve which allows the oxygen to flow to the patient and prevents the patient from breathing in his exhaled air.
Some bags may have a reservoir, which increases the amount of oxygen the patient receives.
PRODUCT SPECIFICATIONS:
Specifications: Infant/Neonate Pediatric Adult
Body weight: ≤ 10kg 10kg~33kg ≥ 33kg
Stroke volume: 150ml/100ml 350ml 800ml
Resuscitator volume: 340ml 680ml 1630ml
Resuscitator weight: 350g 410g 600g
Pressure limiting valve: 40cmH₂O 40cmH₂O 60cmH₂O
Dead space: 7ml 7ml 7ml
Bag Reservoir volume: 1600ml / 600ml 1600ml / 2000ml
Inspiratory resistance: <5cmH₂O (at 50L / min)
Expiratory resistance: <5cmH₂O (at 50L / min)
Patient Connector: ISO
