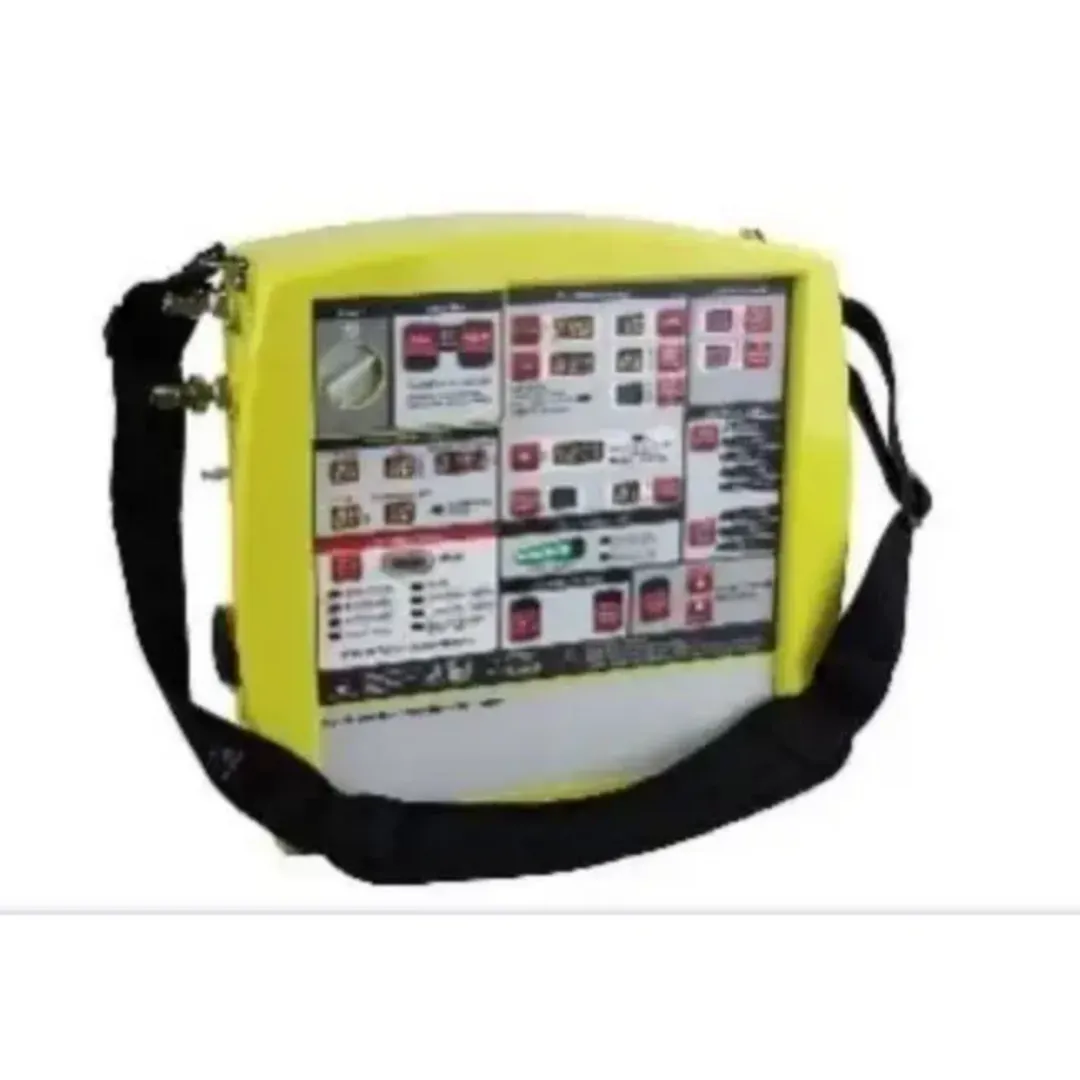

Portable Ventilator
AHP 300P
5 Programmable Quick Start Presets
Technical Specifications
RR (Respiratory Rate): 0 or 5 to 60 b/min
I Time (Inspiratory Time): 0.5 to 2.0 sec
PEEP/CPAP: 0 to 25 cmH2O/0 to 25 mbar
PS (Pressure Support)**: 0 to 25 cmH2O / 0 to 25 mbar*
*PEEP + PS cannot exceed 25 cmH2O/mbar Operating Humidity 5 to 95% non-condensing
Flow: 5 to 60 L/min (flows 80 LPM in PS Mode, CPAP and demand flows)
Pressure Control (Target Pressure): 15 to 55 cmH2O / 15 to 55 mbar
Ptrig (Sensitivity): -5 to -1 cmH2O / -5 to -1 mbar
Manual Inflation: 2 second maximum
FiO2: .21 to 1.00
Maximum I Time: 2 seconds
Flow Wave Pattern: Square or descending**
** Based on mode selected
Auto Lock Function: ON / OFF
Remote Alarm Option: Normally Open/Closed
Monitored Parameters
Paw (Peak, Base)
Delivered Tidal Volume
Spontaneous Breath Count
Integrated Battery Level
External Battery Level – When Attached
Calculated Parameters
I:E Ratio
Flow rate
FiO2
Alarms
